SKU:36533795

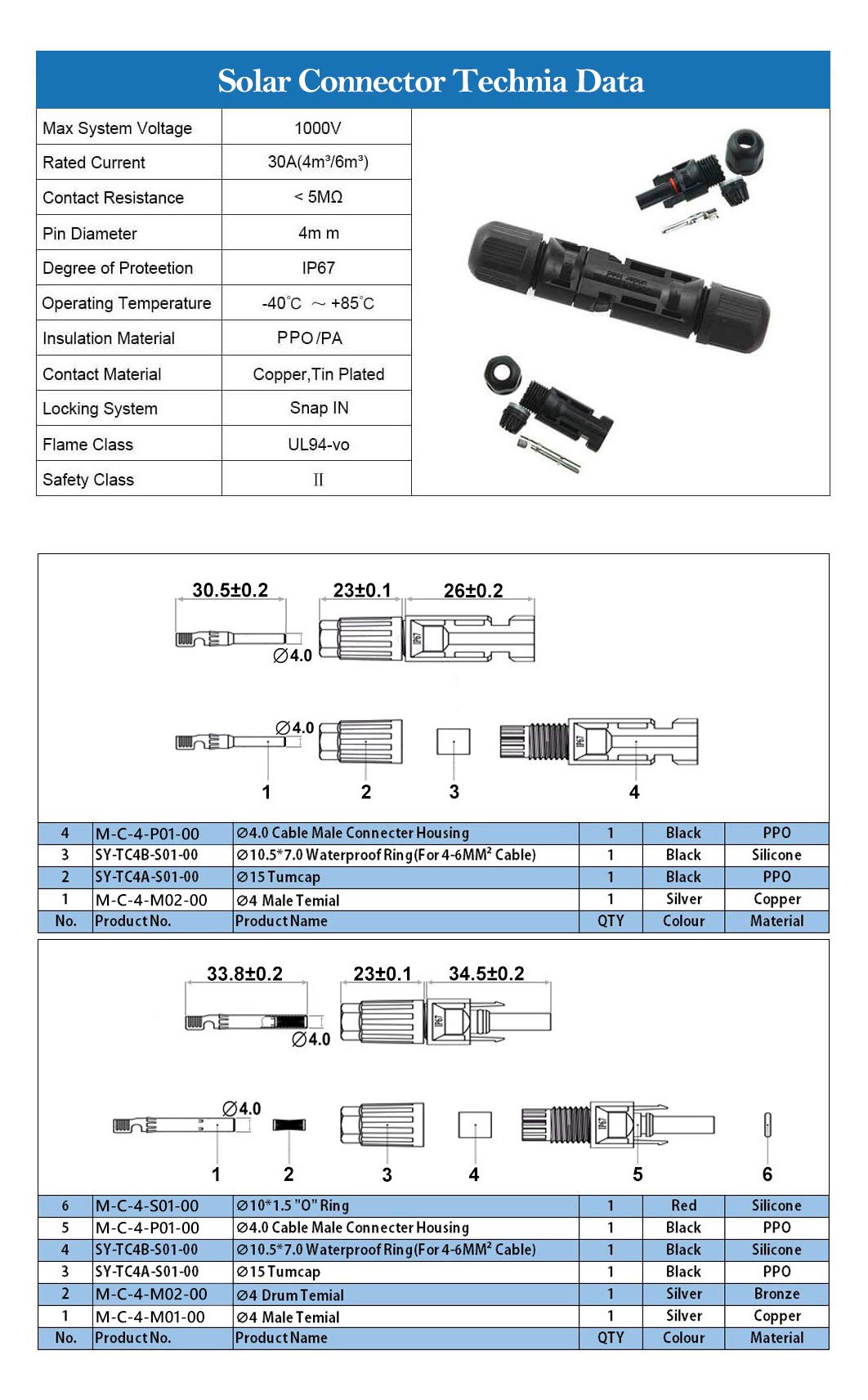

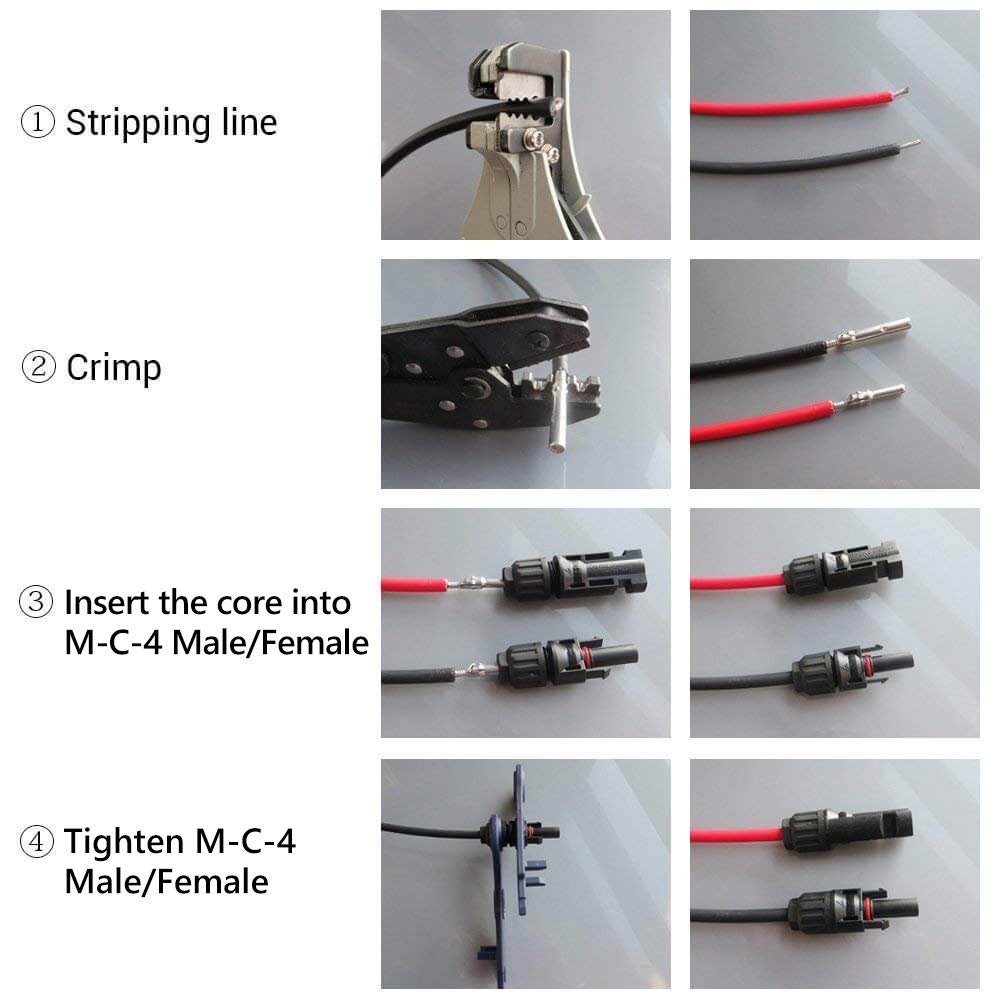

PowMr 50Pairs / 100PCS Solar Connectors - Male & Female IP67 Waterproof Solar Connector: These connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations. Why would you choose the PowMr Solar Connectors? PowMr Cable Connectors are made from high quality PPO materials to ensure the long term durability, PPO materials have advantages that sturdy,impact,corrosion-resistant with a high igniztion point Ensure service life and safety performance. With excellent aging resistance and UV endurance, it can be used in harsh environment. Features Quick & simple assembly processing and simple removal of plugsCompatible with different insulation diametersDouble seal ring, better waterproofConnection by the crimping toolInsulation Material: Made of PPO + PA material. HOW TO INSTALL SOLAR CONNECTORS Maximum working voltage: DC 1000VRated Current: 30ASuitable for: 2.5mm²( AWG14 ), 4mm²( AWG12 ), 6mm²( AWG10 )Contact resistance: ≤1mmΩPollution degree: 2Temperature Range: -40 ℃ ~ +85 ℃Waterproof Class: IP67Insertion force: ≤50NWithdrawal force: ≥50N Required Tools: Package Include: 50Pairs * Male Solar Connectors & 50Pairs * Female Solar Connectors 1 Pair Y Cable 2 Pairs Branch Connectors 2 Pairs Y Cable 2 Pairs Y Cable BE24 - Battery Equalizer 24v BE48 - Battery Equalizer 48v Buying Options Buying Options Buying Options Buying Options Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 823 4.5 out of 5 stars 37 4.7 out of 5 stars 823 4.7 out of 5 stars 823 4.3 out of 5 stars 339 4.3 out of 5 stars 339 Price — no data — no data — no data — no data $19.99$19.99 $49.99$49.99 Weight 0.13KG 0.18KG 0.25KG 0.27KG 0.22KG 0.45KG PowMr 20A 12/24V PWM Solar Charge Controller PowMr MPPT Charge Controller 30 amp EPEVER 10A MPPT Solar Charge Controller 12V/24V auto EPEVER 60A MPPT Controller EPEVER Tracer 80A MPPT Solar Controller EPEVER 100A MPPT Controller Buying Options Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 2.4 out of 5 stars 2 3.6 out of 5 stars 21 4.0 out of 5 stars 27 3.9 out of 5 stars 3 4.1 out of 5 stars 73 4.1 out of 5 stars 73 Price — no data — no data — no data — no data — no data — no data Features Flush mounted with 5V 1A USB LCD Display controller LCD Display Energy-Recording 30A with BT Module Max 100v with backlight 60s solar controller 48V/36V/24V/12V,Negative Ground with backlight 48V/36V/24V/12V,Negative Ground with backlight 48V/36V/24V/12V,Negative Ground with backlight 3KW 24V dc to 230Vac with 40A MPPT controller pure sine wave inverter 5KW 48V dc to 230Vac with 60A MPPT controller pure sine wave inverter 5KW 48V dc to 230Vac with 80A MPPT controller inverter can work without battery 5.5KW 48Vdc to 230Vac with 80A MPPT controller inverter not support parallel PowMr 1200W Pure Sine Wave Inverter 12V DC to 120V AC Converter Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 2.3 out of 5 stars 2 4.1 out of 5 stars 5 3.0 out of 5 stars 1 2.6 out of 5 stars 5 — Price — no data — no data — no data — no data — no data Support battery type 24V Lead-acid battery 48V Lead-acid battery Can work without battery or 48V Lead-acid and Lithium battery Can work without battery or 48V Lead-acid and Lithium battery 12V Lead acid/lithium

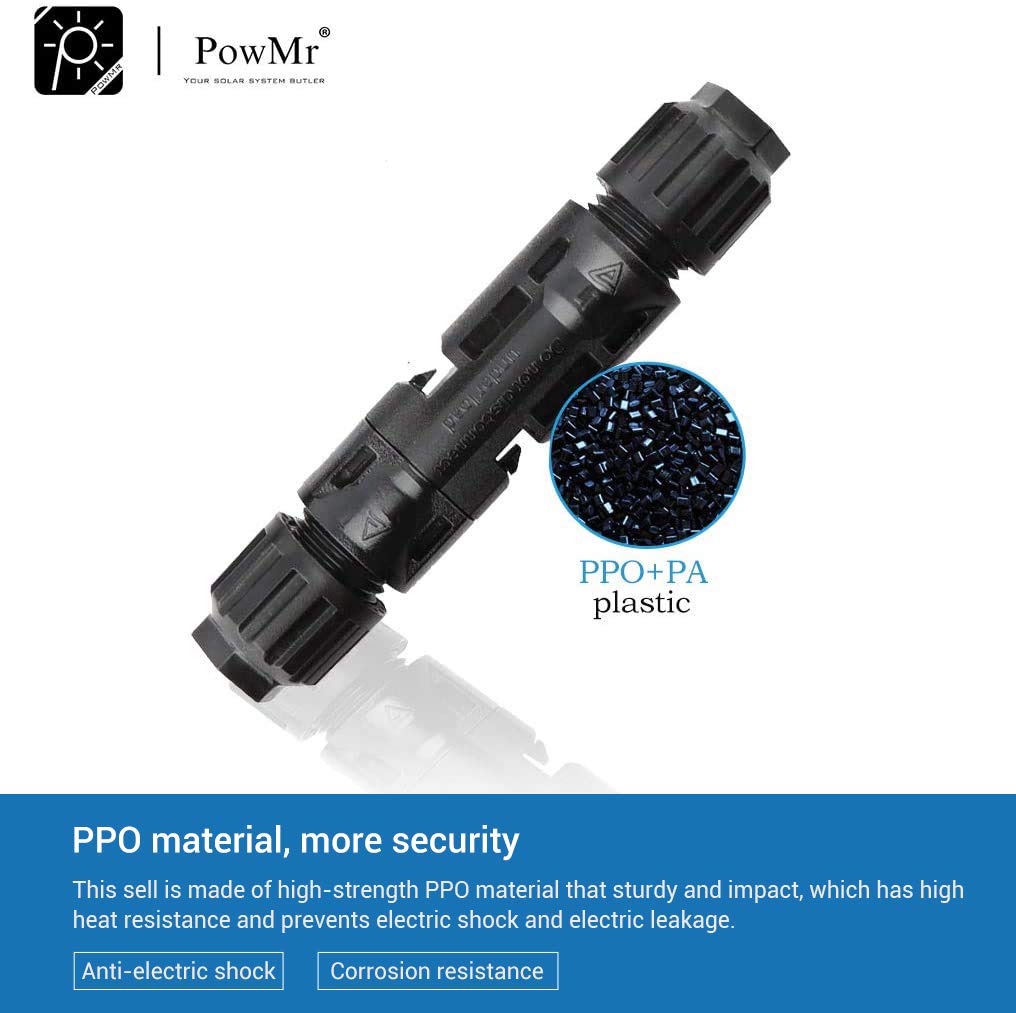

❶Solar Connector Conductor pin is tinned Copper made of PPO + PA material, It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load. WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain,snowstorm or heat for a long time.
❷Solar Connectors Rated voltage - TUV 1000V DC; Rated Current30A; These solar connectors Hard plastic IP67 Waterproof and resist dust build up.
❸These solar connectors are designed to complete a solar panel (PV) array, typically in parallel applications
❹Fastness of male and female points with stable self-locking system which is easy to lock and open. anti-aging and resistance to ultraviolet radiation.

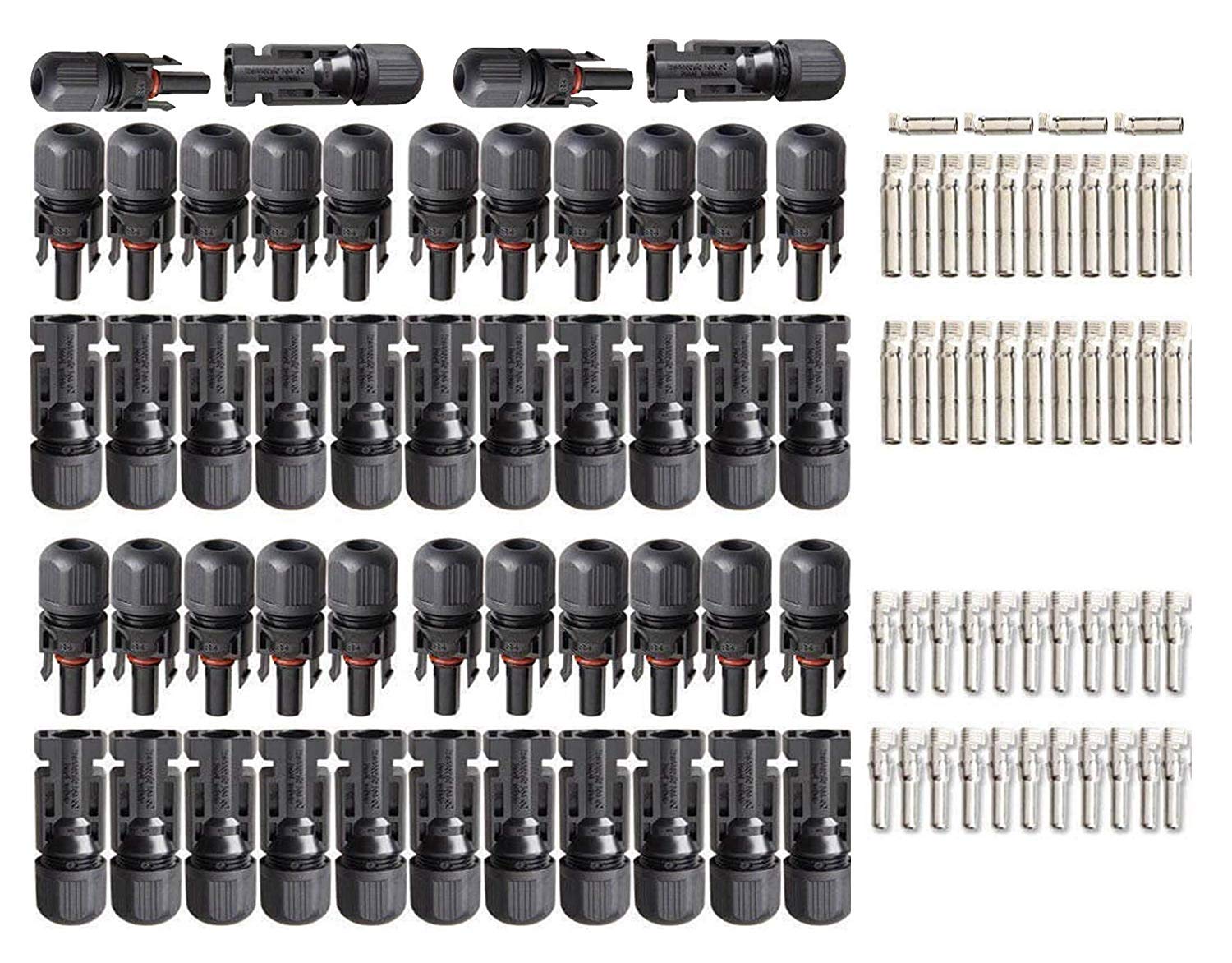

❺solar connectors compatible with PV cables with different insulation diameters, 50Pairs Solar Connectors ( 50PCS Male & 50PCS Female), Suitable for (2.5m㎡--6m㎡/14AWG - 10AWG).
