Wide Application Previous page Next page Waterproof Solder Wire Connectors M20 Waterproof Connector M24 Waterproof Connector M20 Waterproof Connector Material High-performance PBT plastic shell, 4μm gold-plated contact Material High-performance PBT plastic shell, 4μm gold-plated contact Material High-performance PBT plastic shell, 4μm gold-plated contact Rated Voltage AC 500V(2/3/4PIN) Rated Voltage AC 500V(2/3PIN),AC 400V(4PIN) Rated Voltage AC 500V(2/3/4/5/7PIN),AC 250V(9/12PIN) Rated Current 20A(2/3/4PIN) Rated Current 25A(2/3PIN),10A(4PIN) Rated Current 20A(2/3/4PIN),10A(5/7PIN),5A(9/12PIN) Cable Specification 2.5mm²-4.0mm²/14-12AWG(2/3/4PIN) Cable Specification 2.5mm²-4.0mm²/14-12AWG(2/3PIN),1.0mm²-1.5mm²/18-16AWG(4PIN) Cable Specification 2.5mm²-4.0mm²/14-12AWG(2/3/4PIN),1.0mm²-1.5mm²/18-16AWG(5/7PIN) Available Wire Diameter Φ9-Φ12mm(2/3/4PIN) Available Wire Diameter Φ10.0-Φ14.0mm(2/3PIN),Φ10.0-Φ13.0mm(4PIN) Available Wire Diameter Φ9-Φ12mm(2/3/4PIN),Φ7-Φ10mm(5/7PIN),Φ5.0-Φ6.5mm(9/12PIN)

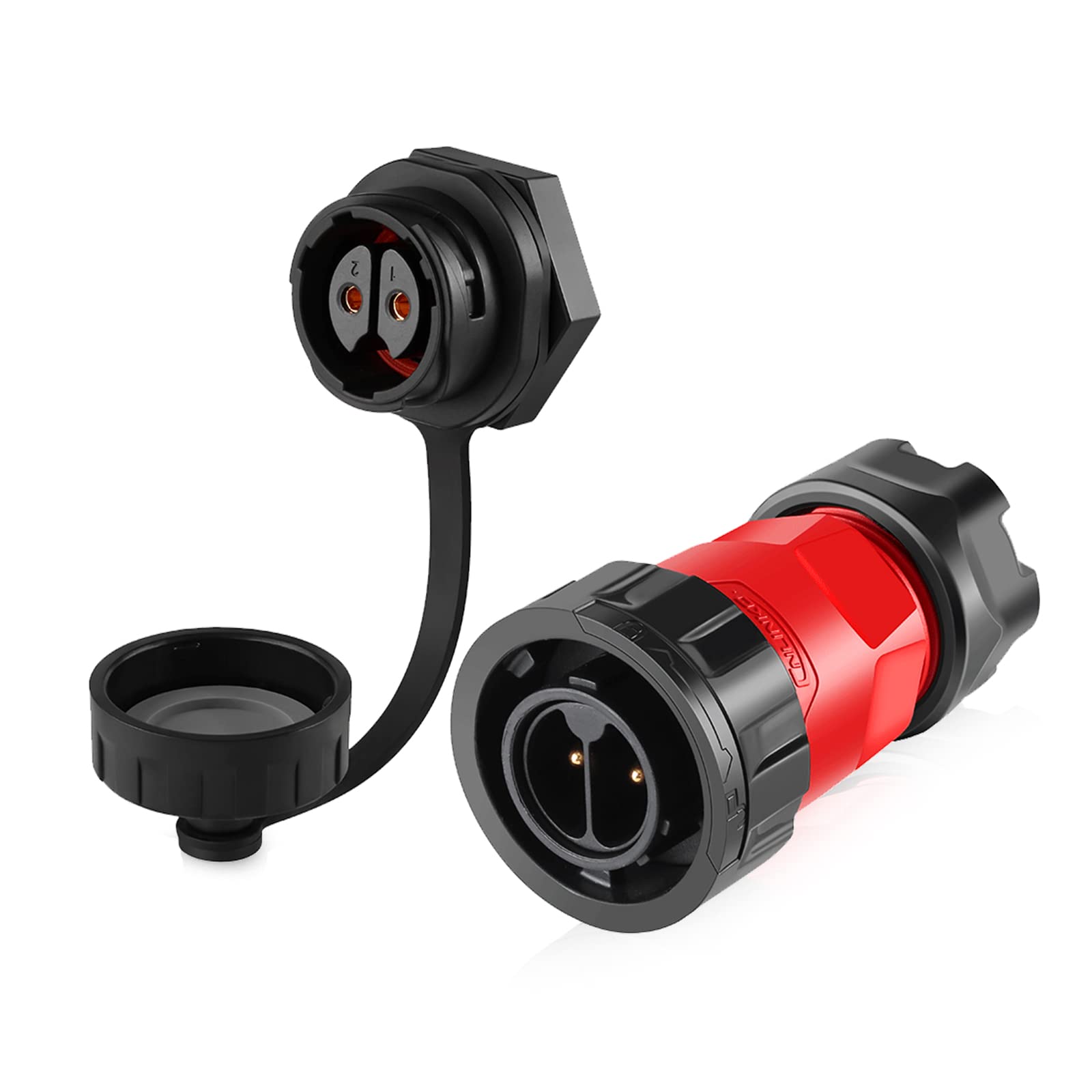

2 Pin Connector Specifications The working voltage of the power connector can reach 500VAC, and the rated current is 20A. General wire diameter 9.0mm-12.0mm.Cable specification 14-12 AWG.Mounting dimensions 20mm.Waterproof Protection level IP67. Package list 1 male plug + 1 jack female socket.

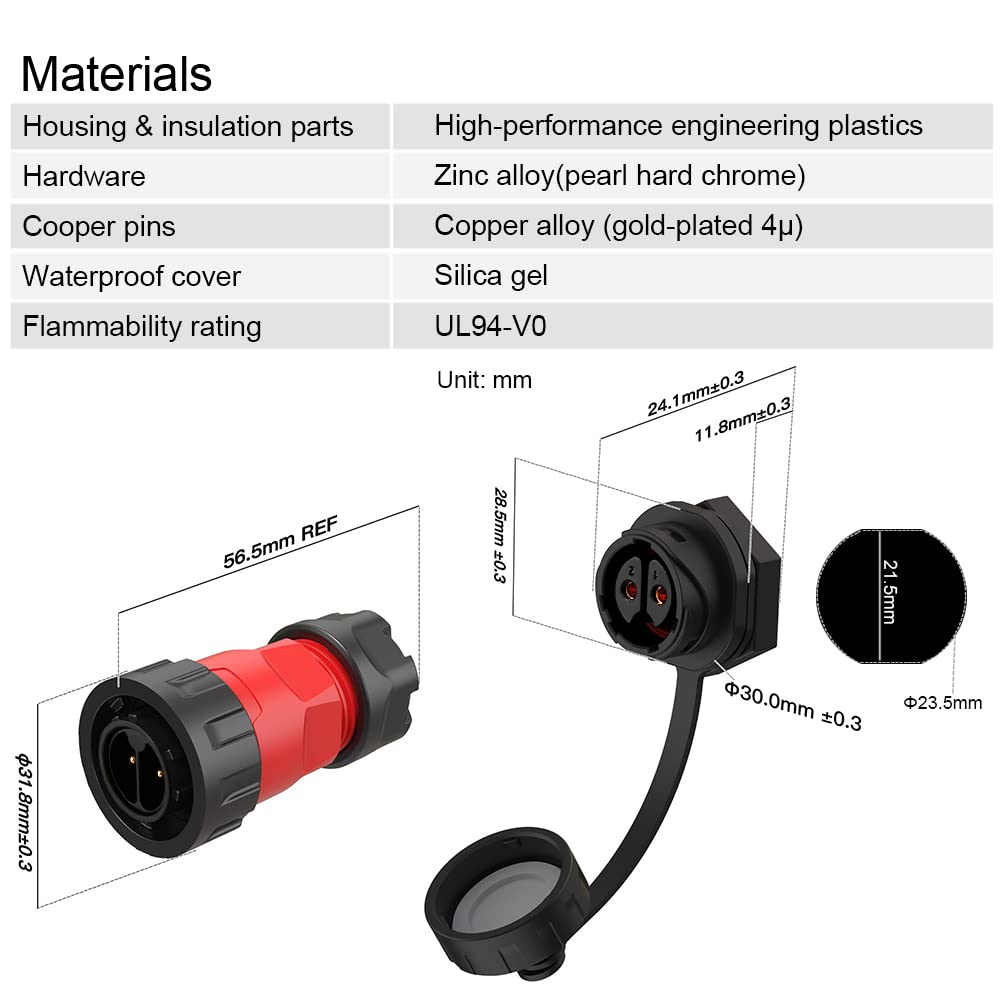

High-Quality Material Our 2 pin waterproof connectors use a PBT material shell that is imported from abroad with stability, compression, anti-explosion, and anti-deformation. Using gold-plated contact with the superior performance of corrosion resistance and electrical conductivity effectively takes care of temperature rise. The plug and socket adopt the barrier design, and the insulation performance is enhanced.PIN needle lengthened and the tensile force after soldering is greater.

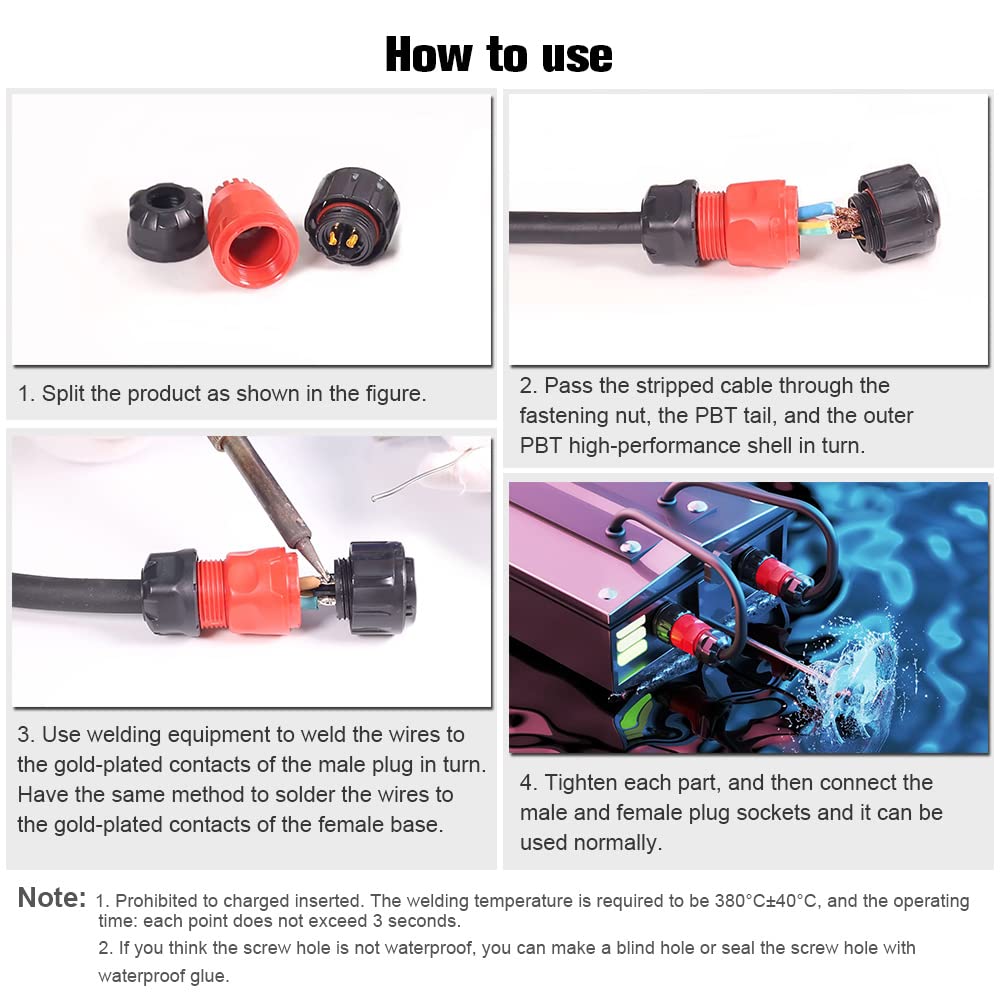

Easy to Install Plastic Connector Cable connection type Soldering. Take a bayonet-type fast locking connection, which is convenient, fast, safe, and stable. The precise structure positioning system ensures the security and stability of the connection performance. The wiring welding temperature requirement is -40 to 176 Fahrenheit scale. Operation time is each point does not exceed 3 seconds.

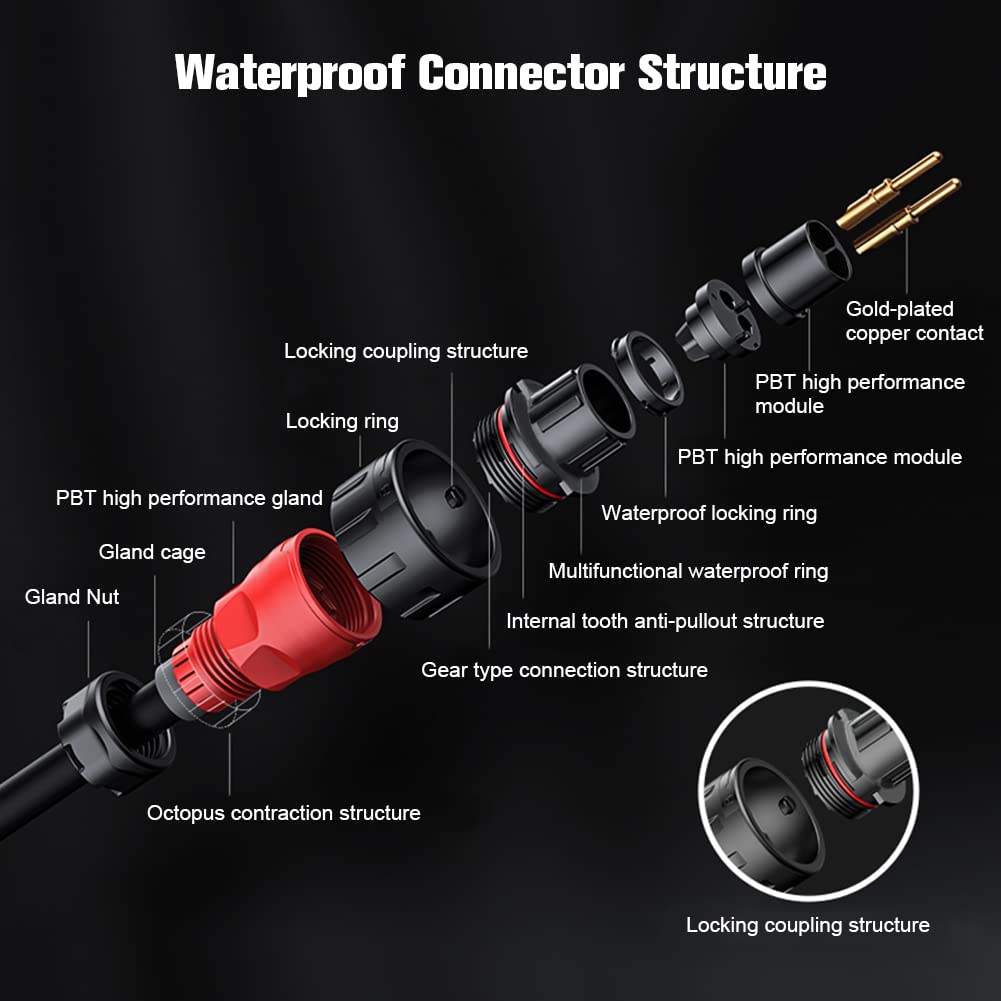

Perfect Waterproof Wire Connectors The waterproof connector design uses the multilayer waterproof and sealing system, from the plug, socket the two ends of the sealed waterproof ring, to the end of the clip line waterproof ring. Multilayer waterproof design, to ensure your machine still maintains excellent connection performance under harsh external conditions. The connector is fully upgraded. The internal structure is upgraded, and the performance is stable.
Wide Application Industrial Electrical Connector The aviation connector is ideal for any equipment for watertight, indoor/outdoor applications, such as outdoor electric tools or appliances, medical devices, audio/video, robots, RV solar, communications, marine or automatic equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, etc.
This turned out to be just the right connector for my small boat lights. Mounted the female part in my battery box, soldered the wires to the tabs, then installed the wire from the lights on the larger male part and it was as simple as that. Connects easily, indexed so you don't end up with reversed polarity, and it has been a nice tight seal every time it's connected.
