SKU:61669465

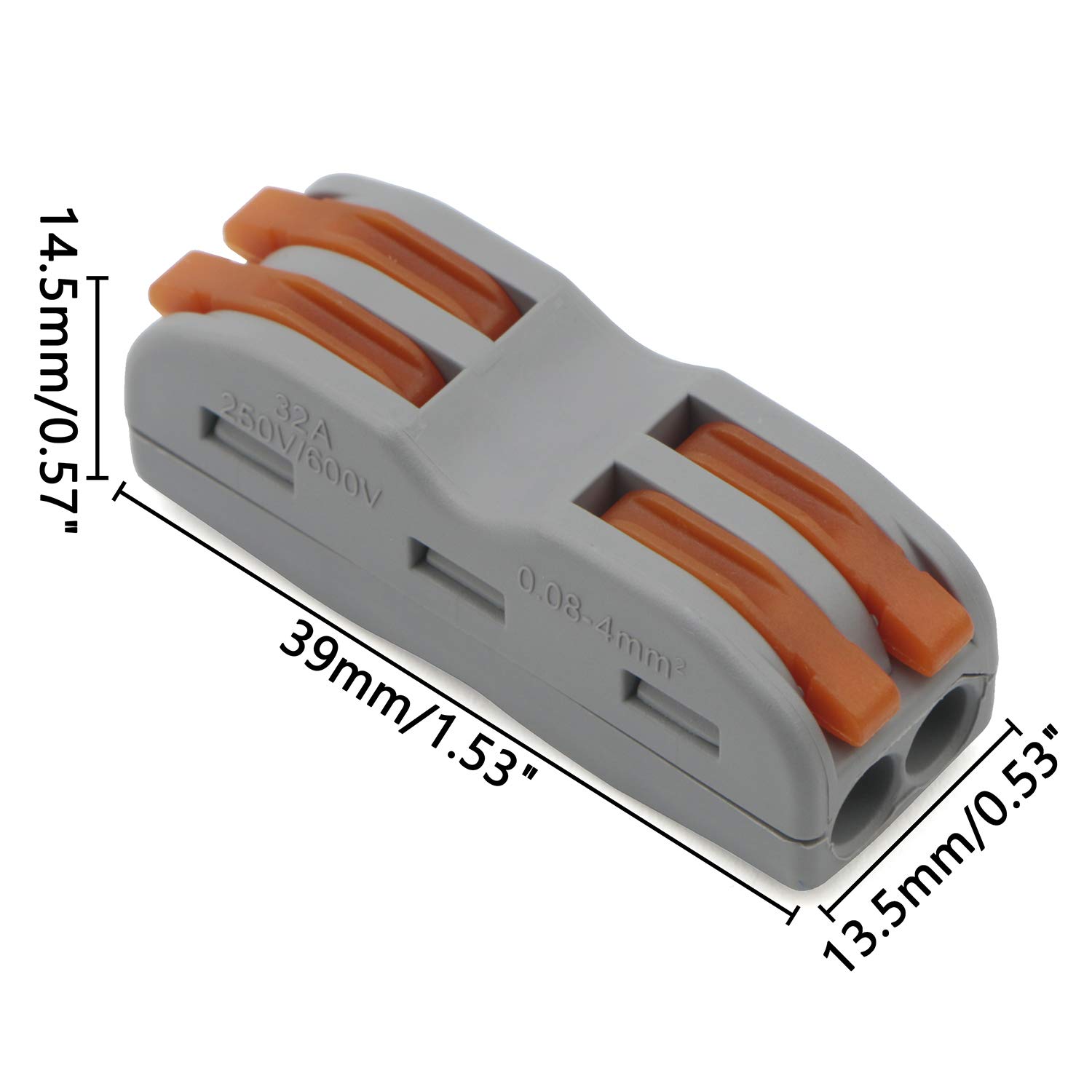

☆Specification: Model: SPL-2 Applicable wire: soft wire, hard wire: 0.08-4.0mm2 Current Rating: 32A Rated Voltage: 250V/4KV Rated power: 7KW Housing material: flame retardant PA66 Internal material: PA66 Conductive material: pure copper Spring material: nickel-chromium alloy steel Size: 39*13.4*14.5mm ☆Connector instructions for use: 1.Strip off the housing of wire sheath by the calibration length（Stripping length: 10MM),make sure that wires are plugged into the end. 2. Push the orange levers to 90°,insert the wire at the corresponding inlet 3. The wire can be connected, press the switch ★Note: The bare wire part is inserted to the end, do not leak outside the hole Disconnecting method: open the switch connector to pull out ☆Package Included: 30pcs x SPL-2 butt connectors
❤Material Wire connectors are made of nylon PA66 with high quality flame retardant insulation material, which has the advantages of long life, aging resistance, high pressure resistance, insulation and flame retardant.
❤Save time Lever-nut connector instead of traditional electrical tape and electrical butt connectors twist-type, technological innovation reduce wiring time by 70%.
❤Convenient and practical Just lift up the lever, insert the stripped wire, and press the lever closed, holds tight and makes a solid connection. The wire connectors nut is convenient for daily use and saves space.
❤Reusable These wire connector are suitable for soft and hard wire. Besides, it is a reusable connector.
❤They work with most every gauge of normal household wiring ceiling fans, sockets, switches, cars, motorcycles, ships, loudspeakers, lamps, electrical boxes, chandeliers, light switches, fan controls, and much more.
A little bit of a learning curve -Hint the tabs go up to lock in - I personally think that is a backward design since it would take up less space and be less prone to failure when jostled around inside a box but I am not an engineer. Over all though these are the most handy wire connectors I have used and I highly recommend them for any DC connections where you have a bit of extra space to use them. They can be a bit fragile though so make sure you order a decent size pack with extras. I had one lever break off out of the 30 or so I have used so far.
