SKU:71491559
Apply for AWG: 16-22 (1.3-0.3mm²)Operating temperature : 14℉-176℉Female/male connector hole diameter: 6mm/0.24"Use for cars, trucks, boats, motorcycles, trailers, scooter, quad bike, trike, caravan, marine, jet ski and other wire connections. NOTE: It is important to identify the insulation tabs, conductor tabs and wings on the terminals. These wings work for locking the connectors. ***DON’T CRIMP WINGS*** Crimp conductor tabs to the stripped wires. Crimp insulation tabs to the insulated wires. Don't deform the terminals (otherwise, the terminals and connectors will not be locked). PULL TEST is very important. Pull test to make sure that the terminals are crimpped well; If the terminals do not tight into the place, the wires will easily be pulled out from the connectors. If you have troubles to crimp the terminals. The terminal crimping tool (Weather Pack Crimper) could help you tight the terminals on the wires very well. There is only one direction to insert terminals. (The way likes picture shows.) The terminals lock the connector with a snap. Once you insert terminals, they will not be pulled out again. If you put them to wrong direction, they will be pulled out easily. Don't put the red clip before you insert female terminals to the male connector.Don’t need to put the red clip into the female connector (it’s already in). If you can't insert the terminals into the connectors easily. If the terminals and connectors can't lock. The terminal is deformed and not straight. (if yes, fail to insert the connectors.)The wings of terminals are not crimpped. (if yes, lock failed.) The direction of terminals to connectors are wrong. (Can't lock)The terminals are failed to into the end of the connectors. (Can't lock) Twippo 3 Pin Automotive Electrical Connectors : Waterproof electrical connectors, dustproof, waterproof, great for high sensing performance requirement electrical system. Automotive 3 pin waterproof connectors are suitable for motorcycle, car, truck, scooter, jet ski, boat, etc. Features of 3 Wire Connector: 1. Package includes 20 sets 3 way wire connector, different types of quick connect electrical parts to meet different usage needs. 2. Conectores de cables electricos are made of high quality plastic material with good waterproof function safety. 3. Weather pack connectors kits are good tools for auto repair and reset, very suitable for home DIY and auto repair shop use. 4. Male female wire connectors for cars are come with a compact and practical plastic box, convenient to carry and store in category, without taking up much storage space. Specification of 12 Volt Connectors 3 Pin: Material: Plastic Rated Current: 12A Number of Stitches: 3 pin connector Package Included: Automotive connectors 3 Pin with male & female terminal and silicone rubber cable seal. Waterproof connector 3 wire: a total of 20 sets of automotive connectors waterproof are included, which can meet most of your needs. 1Pin Wire Connector 2Pin Wire Connector 3Pin Wire Connector 1-4Pin 16AWG Wire Connector 1-4Pin 18AWG Wire Connector 1-4Pin 20AWG Wire Connector Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 56 4.3 out of 5 stars 1,002 4.3 out of 5 stars 1,002 4.7 out of 5 stars 409 4.7 out of 5 stars 409 4.7 out of 5 stars 409 Price $14.99$14.99 $14.99$14.99 $16.99$16.99 $31.99$31.99 $29.99$29.99 $29.99$29.99 Model 1 pin 2 pin 3 pin 1-4 pin 1-4 pin 1-4 pin Qty 20 sets 20 sets 20 sets 26 sets 26 sets 26 sets Wire no data no data no data ✓ ✓ ✓ Apply for 22-16 AWG 22-16 AWG 22-16 AWG 20-16 AWG 22-18 AWG 24-20 AWG 1-4Pin Wire Connector 1-6Pin Wire Connector 1-6Pin Wire Connector 1-4Pin Wire Connector 2Pin Wire Connector Crimping Tool Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 1,469 4.4 out of 5 stars 1,298 4.4 out of 5 stars 1,298 4.3 out of 5 stars 252 4.3 out of 5 stars 252 4.5 out of 5 stars 377 Price $14.99$14.99 $15.99$15.99 $27.99$27.99 $31.99$31.99 $25.99$25.99 $17.99$17.99 Model 1-4 pin 1-6 pin 1-6 pin 1-4 pin 2 pin 1 set Qty 1pin--8 sets 2pin--6 sets 3pin--6 sets 4pin--6 sets 1pin--4 sets 2pin--4 sets 3pin--3 sets 4pin--3 sets 5pin--2 sets 6pin--2 sets 1pin--10 sets 2pin--8 sets 3pin--8 sets 4pin--6 sets 5pin--6 sets 6pin--5 sets 1pin--6 sets 2pin--12 sets 3pin--4 sets 4pin--4 sets 20 sets 1 set Wire no data no data no data no data no data no data Apply for 22-16 AWG 22-16 AWG 22-16 AWG 18-14 AWG 18-14 AWG 26-10 AWG

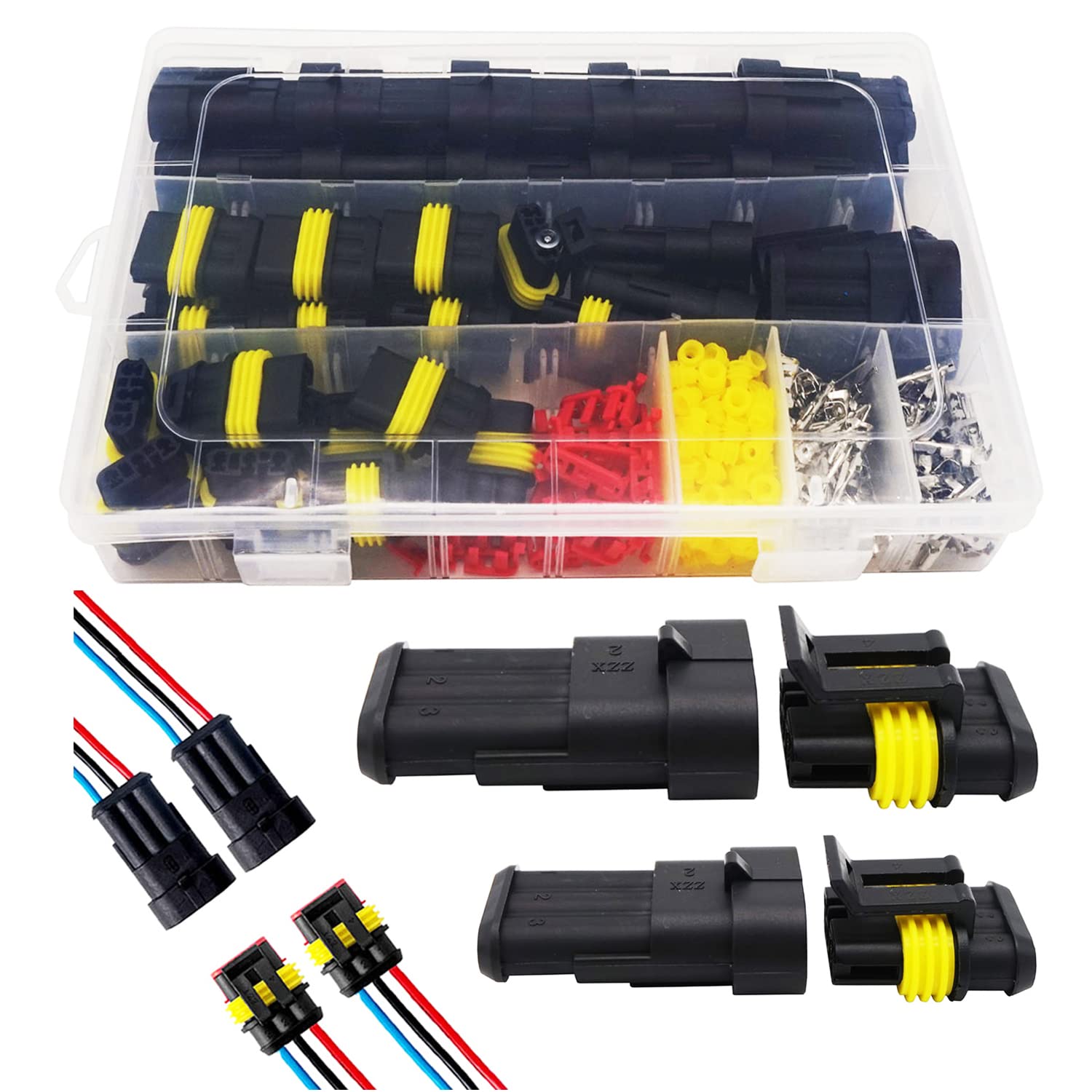

【Package Content and Electronic Manual】20 Kits waterproof electrical connectors 3 pin with male & female terminal and silicone rubber cable seal, 3 pin waterproof connectors a total of 20 sets of automotive connectors waterproof are included, Ideal for 16-22 AWG wires. Please download the operating instructions first before use.
【High Quality of Automotive Pin Connectors】Automotive electrical connectors 3 pin are made of high quality environmental-friendly materials, with high chemical stability, electrical conductivity, waterproof, dustproof and safe. Buckle design of gm electrical connectors quick connect 3 pin ensures accurate and complete insertion of the contact in the housing and prevents it from slipping out of the wire harness connectors 3 pin, can also be easily removed when needed.
【Excellent Performance of Automotive Wire Connectors 3 pin】The automotive connectors 3 pin use high-precision copper plating process to improve conductivity, easy to install under soldering and crimping, reliable safe connection, no loose, and lightweight. Weather-pack connectors 3 pin are perfect automotive replacement ignition plug connectors.
【Widely Applications of Pin Connectors Kit】Wire connectors automotive are great for various 12v connectors 3 pin of motorcycle, truck, marine, jet ski, scooter, car, and boat etc. Believe that our quick disconnect wire connectors 3 pin can give you a great help.
【Service Guarantee of 3 Pin Connector】If you have any dissatisfaction with the quick connect wire connectors or the size of the 3 pin trailer connector, we can offer you 365 days payment refund guarantee, we guarantee a 100% return and give you a refund for waterproof connector 3 wire. Sincerely wish you a happy shopping!
I bought these to use on a bicycle with a removable dynamo front wheel. Assembly is a bit fiddly, but I expected that. The first crimp failed my pull test and wasted a pin, but again, no surprise. The next four crimps were fine. I could not get the tabs to click/lock on the first female shell, but they locked on the second one. In use, these connectors give excellent weather sealing, and a positive lock when mated, but easy to decouple without the need for tools. I would say there’s just a small learning curve to making them work.
