SKU:82092383
Specification: Item Type: Heat Shrink Butt Connector Material: Plastic Quantity: 1 Box (120pcs) Solder Sleeve White SST-S11(30PCS) Solder Sleeve Red SST-S21(40PCS) Solder Sleeve Blue SST-S31(40PCS) Solder Sleeve Yellow SST-S41(10PCS) Size: Red connector: Approx. 2.7mm/0.11in in diameter, cable cross-section 0.5 to 1.0 mm² Blue connector: Approx. 4.5mm/0.18in in diameter, cable cross-section 1.5-2.5 mm² White connector: Approx. 1.7mm/0.07in in diameter, cable cross-section 0.25-0.34 mm² Yellow connector: Approx. 6.0mm/0.24in in diameter, cable cross-section 4.0-6.0 mm² Operating Temperature: -55°C to 125°C (-67°F to 256°F) Minimum Shrink Temperature: 80°C (176°F) Lowest Temperature of Solder Melting: 138°C (280.4°F) Shrinkage Ratio: 2:1 Temperature that Start to Shrink: 80℃ Temperature that Solder Ring start to Melt: 111˚C Temperature that Solder Ring Melt Completely: 138˚C Application: Whether you are working on your boat, vehicle, home or scientific project, our heat shrink solder and seal connectors will ensure solid soldering, increased current flow and weatherproof connections every time. Package List: 1 Box of Heat Shrink Butt Connector (120pcs)

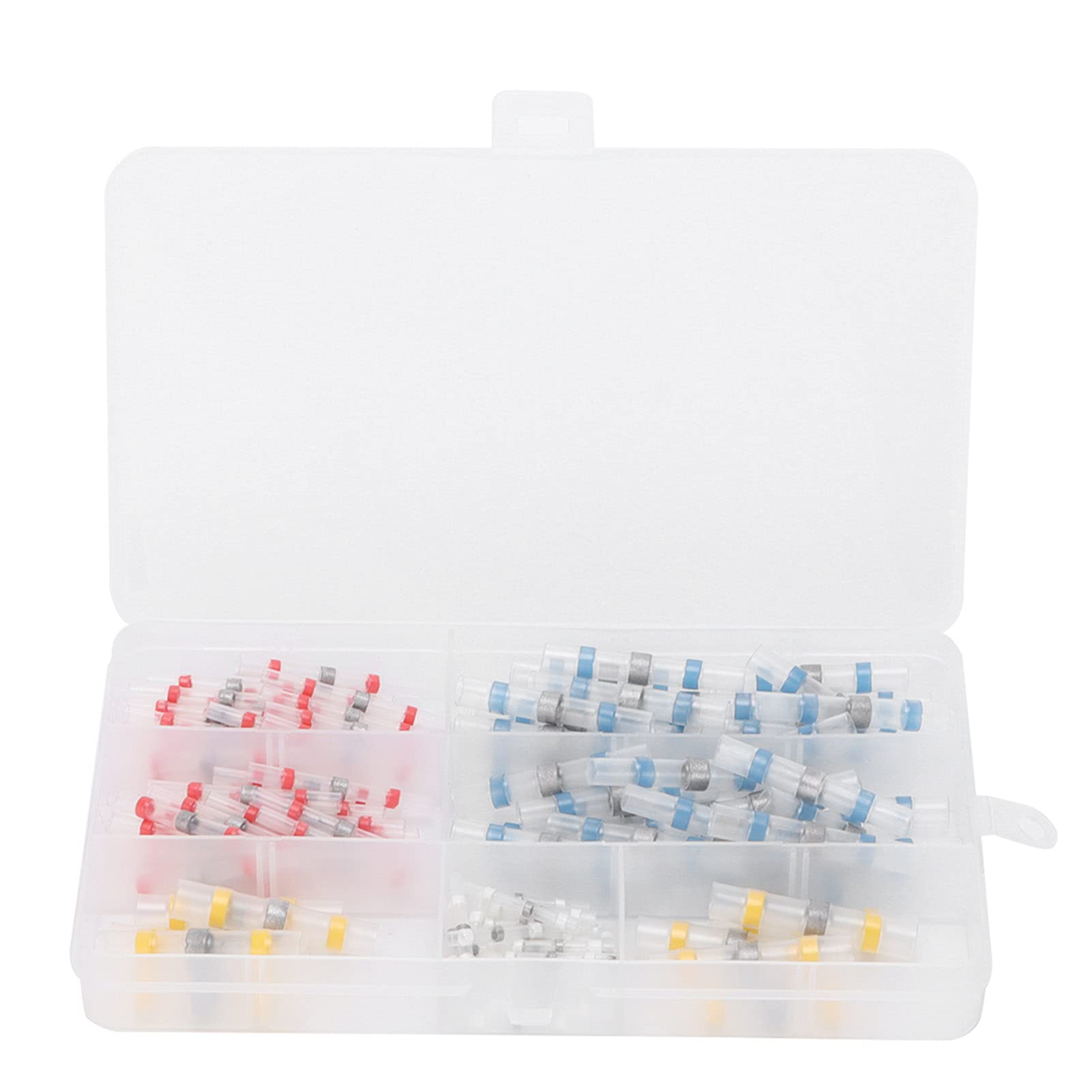

Storage box : The connector is installed in a storage box for easy transportation, simple storage and organization. In addition, the specific color code of the tube (white: SST-S11; red: SST-S21; blue: SST- S31; yellow: SST-S41), which allows you to easily identify the appropriate connector size for each application
Wide application : The heat shrinkable connector can be widely used in ships, vehicles, homes and scientific projects. Our heat shrinkable solder and hermetic connectors will ensure firm welding, increase current and weatherproof connections
High-quality material : The welded sealed wire connector is made of high-quality plastic, with excellent sealing, strain relief, cable inspection and insulation properties. It is Replacement for use in harsh environments and has a 2:1 Shrinkage rate, -55℃ ‑125℃ working temperature, 80℃ minimum shrink temperature and 138℃ minimum solder melting temperature
Protection of wires and cables : The heat shrinkable tube ensures that the wires are connected firmly and prevents the wires from slipping out of the terminals. It can effectively protect the wires and cables from abrasion, cutting, scratches and low impact conditions. The solder seal ring provides an environmentally friendly seal. protection
Easy to use : No need for crimping tools and welding machines. When stripping and inserting wires, the transparent sleeve provides precise inspection. The color-coded pipe makes it easy to pick up and use, and its small size makes it easy to use in hard-to-reach or space-limited environments
