SKU:25218187
Feature:Material is Insulated, Safe and Reliable and Can Be ReuseExcellent Quality,It Helps the Wires NOT Fall Off and is Firmly ConnectedEffectively Organize Interlaced and Complex Cables to Free Up SpaceCan Replace the Traditional Tape Connection, Using the Compact Connector to Save TimeApply to Household Electric Wires, Lighting and Other Electrical Equipment.Such as Sockets, Switches, Ceiling Fans, Cars, Speakers, etc.Lever Wire ConnectorSpecification:Rated Voltage:250V/4KVRated Current:32AApplicable Wire: AWG 28-12Guide Bar: Electrolytic Copper Tin PtatingClamping Spring: High-alloy Nickel-Chromium TeelOuter Casing: Flame Retardant PlasticSpring: Nickel Chromium Alloy SteelApplication:The Lever Connector Kit Can Be Used for Motor, Electrical Control, Power Supply, Home Appliance, Lighting, Machinery and Other Wire Connection Parts
Lever Wire Connectors Rated Voltage 250V / 4KV; Rated Current 32A; Rated Power 7KW

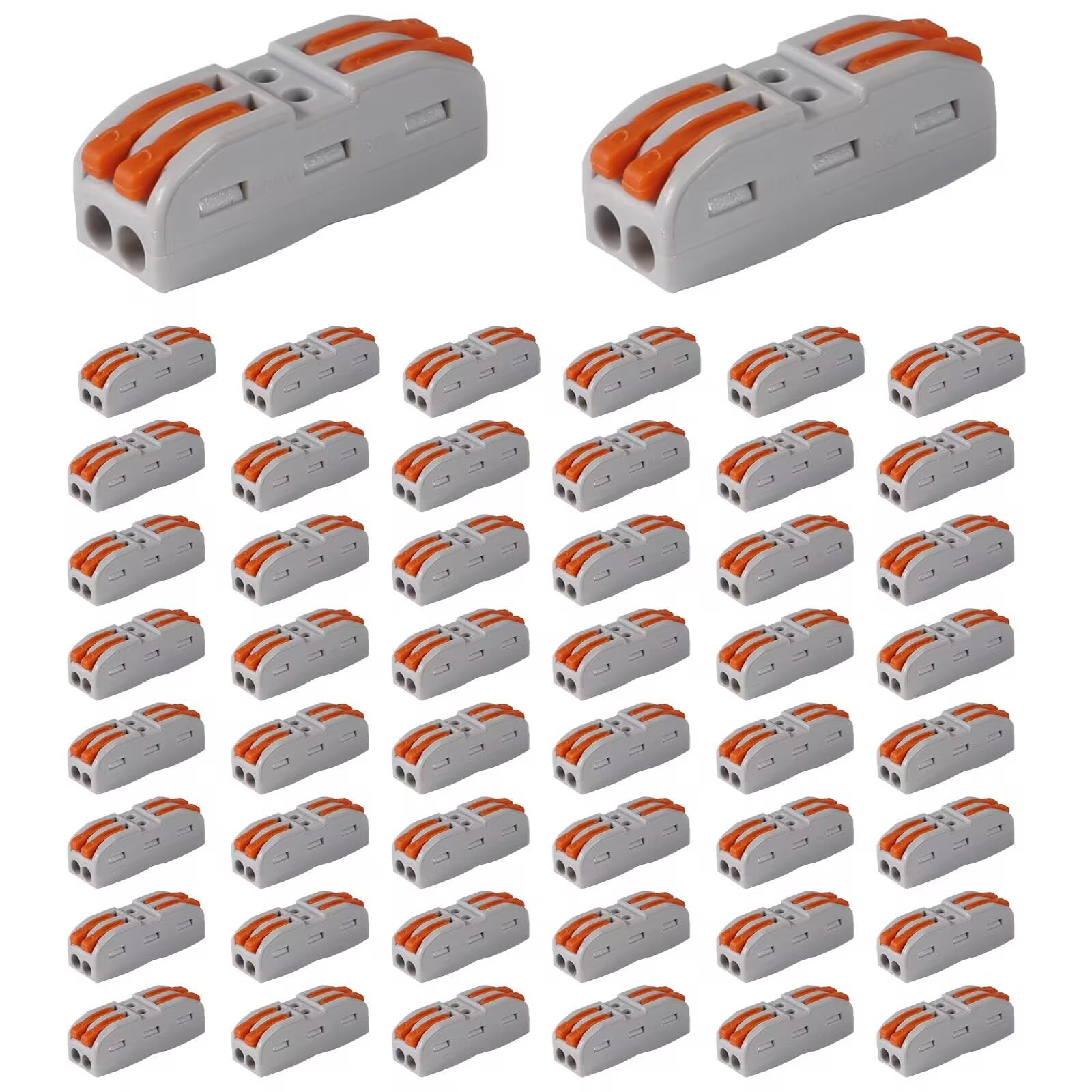

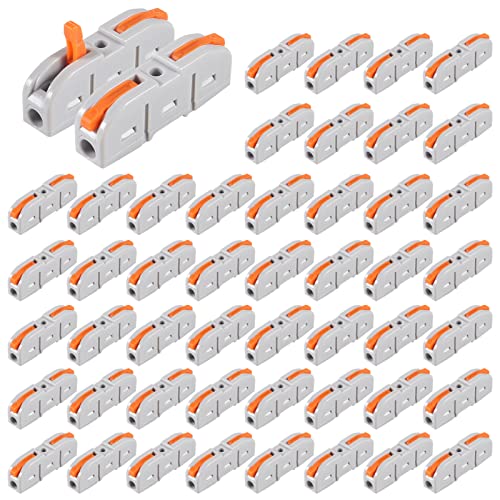

SPL-2 Lever Wire Nut Connectors Can Meet Your Different Demand Because It Can Be Splicing Into 2 3 4 6 or Any Way Conductor Butt Terminals Wire Connectors. It Can Connect Any Combination of Solid, Stranded, and Flexible Copper Wires

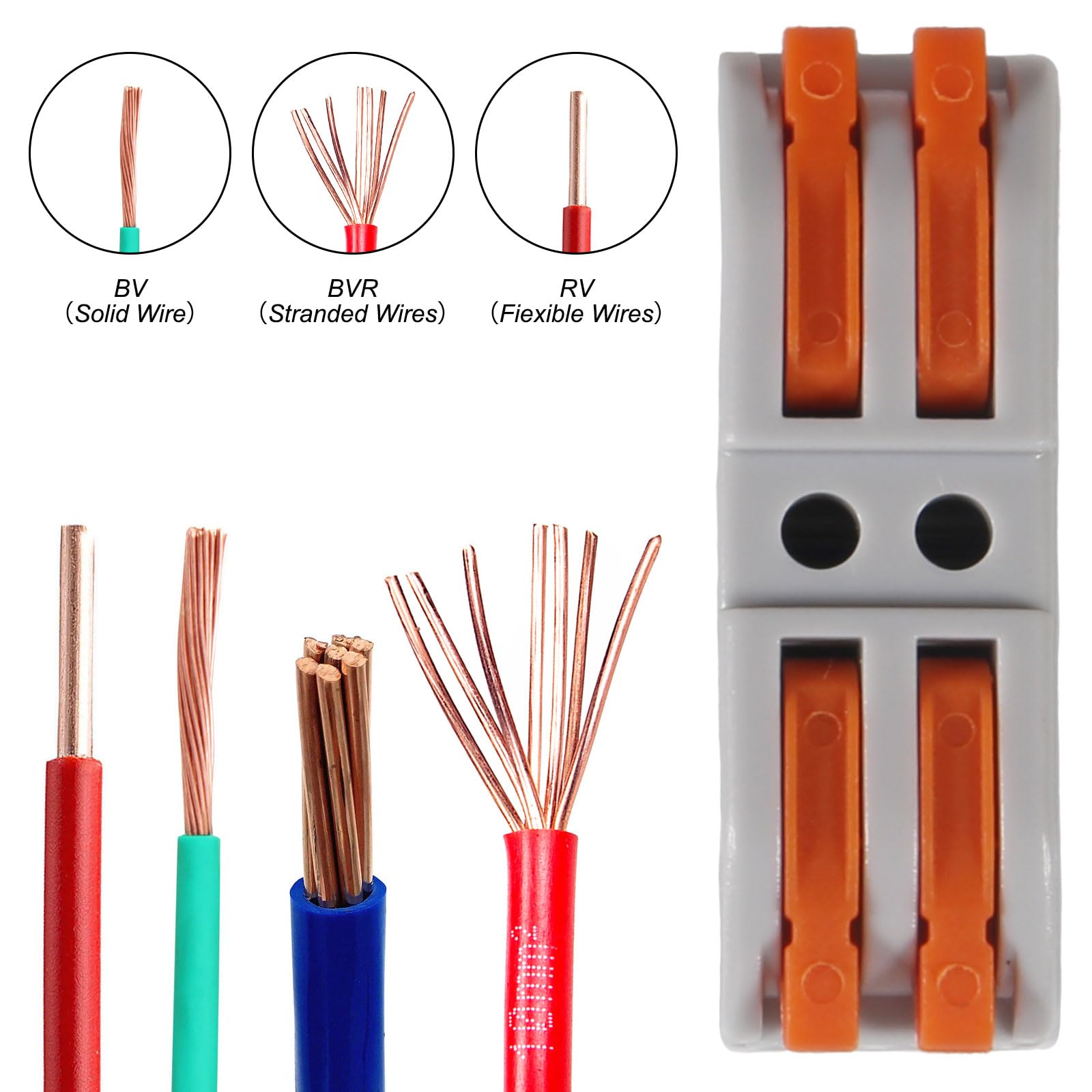

SPL-2 Lever Wire Nut Connector is Suitable for Both Soft and Hard Wires, with 0.08 to 4.0 mm²/ 28-12AWG. It is Widely Used in Sockets, Switches, Lamps, Electrical Boxes, Chandeliers,Loudspeakers, Fan Controls, and etc.

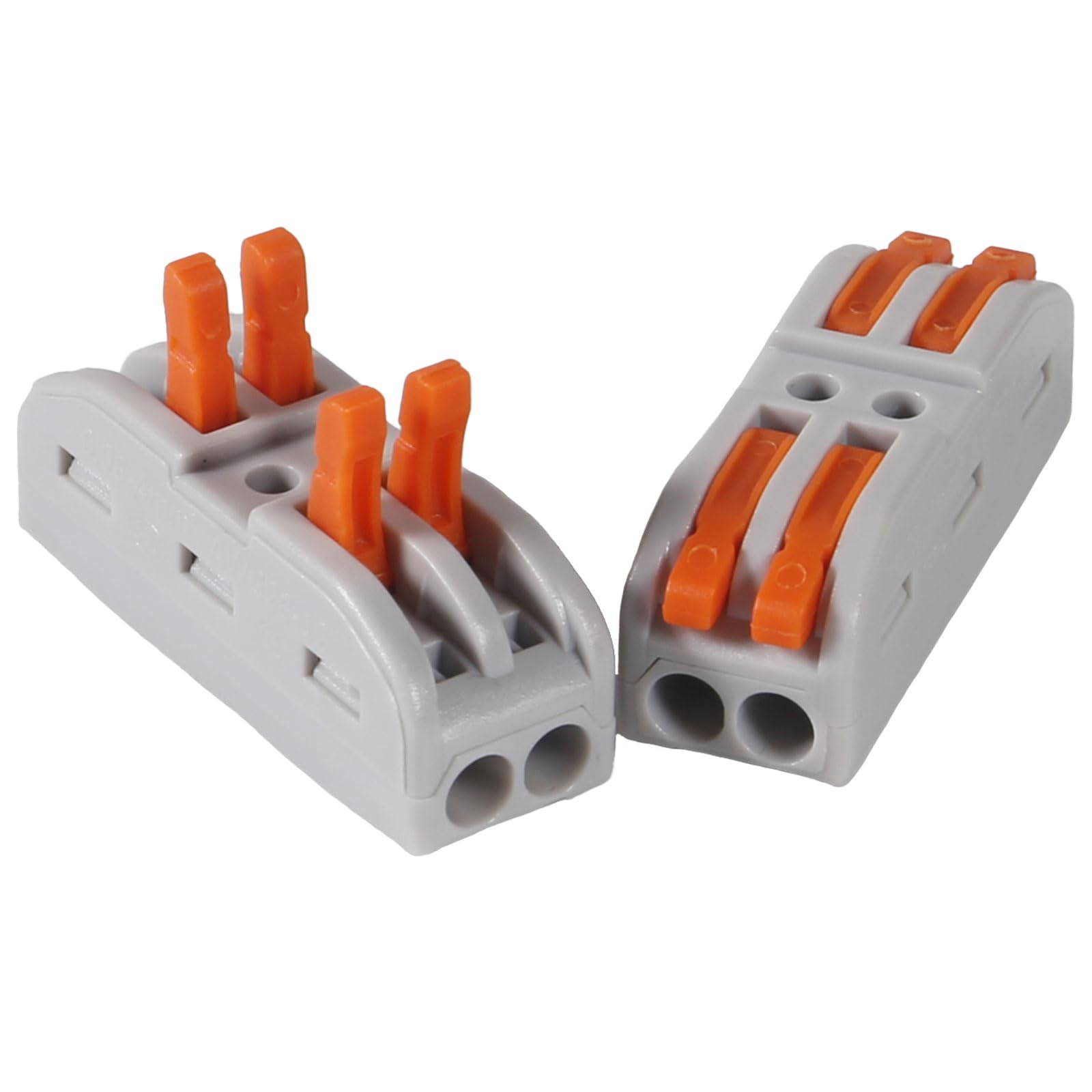

SPL-2 Wire Splicing Connector Can Be Installed Easily Without Tools. Strip 10mm Long Wire Sheath and Then Push the Orange Clip Slightly to the Top 90 Degree and Insert the Cable. Then Press the Lever to Close the Clamp
SPL-2 Wire Connector is Made of High Quality Flame Retardant Insulating Material Nylon PA66 Which is Durable and Longer the Service Time
I really like these wire connectors. They are much more convenient than wire nuts, and can potentially be easier to use for certain installations where you are joining only two wires together. For more than two wires, wire nuts would still be the way to go. I tested the connectors using a piece of 14 gauge solid wire and a light gauge (20 or 22) stranded wire. The connector clamped very securely on both. There's no looseness of any sort. And, the clamping mechanism is in fairly deep so the insulation on the wire can be recessed deeply in the bore of the connector.
