SKU:34392306
Lever Wire Connector Specification: Rated Voltage:250V/4KVRated Current:32AApplicable Wire: AWG 28-12Guide Bar: Electrolytic Copper Tin PtatingClamping Spring: High-alloy Nickel-Chromium TeelOuter Casing: Flame Retardant PlasticSpring: Nickel Chromium Alloy Steel Application: The Lever Connector Kit Can Be Used for Motor, Electrical Control, Power Supply, Home Appliance, Lighting, Machinery and Other Wire Connection Parts Applicable Wires: Solid Wires: 0.2-4mm² (28-12 AWG) Stranded Wires: 0.2-4mm² (28-12 AWG) Flexible Wires: 0.2-2.5mm² (28-14 AWG) Feature: Material is Insulated, Safe and Reliable and Can Be ReuseExcellent Quality,It Helps the Wires NOT Fall Off and is Firmly ConnectedEffectively Organize Interlaced and Complex Cables to Free Up SpaceCan Replace the Traditional Tape Connection, Using the Compact Connector to Save TimeApply to Household Electric Wires, Lighting and Other Electrical Equipment.Such as Sockets, Switches, Ceiling Fans, Cars, Speakers, etc. Install Steps: Strip the Wire to 0.35inch - 0.47inchPush the Lever to 90° and Insert the Wire LeadPress the Lever to Close the ClampCheck and Test Hole Whether Connected Correctly
Lever Wire Connectors Rated Voltage 250V / 4KV; Rated Current 32A; Rated Power 7KW
High Quality & High Security SPL-1 Wire Connector is Made of High Quality Flame Retardant Insulating Material Nylon PA66 Which is Durable and Longer the Service Time
Easy to Install SPL-1 Wire Splicing Connector Can Be Installed Easily Without Tools. Strip 10mm Long Wire Sheath and Then Push the Orange Clip Slightly to the Top 90 Degree and Insert the Cable. Then Press the Lever to Close the Clamp

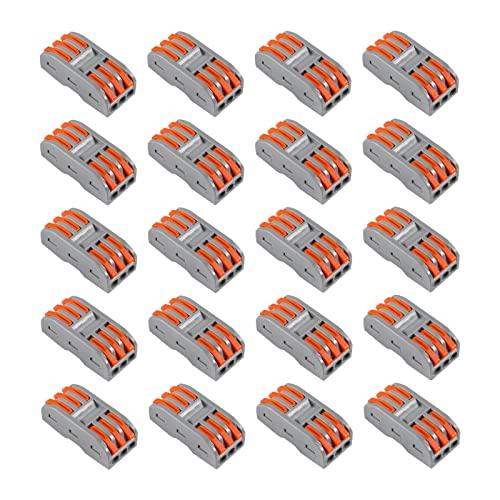

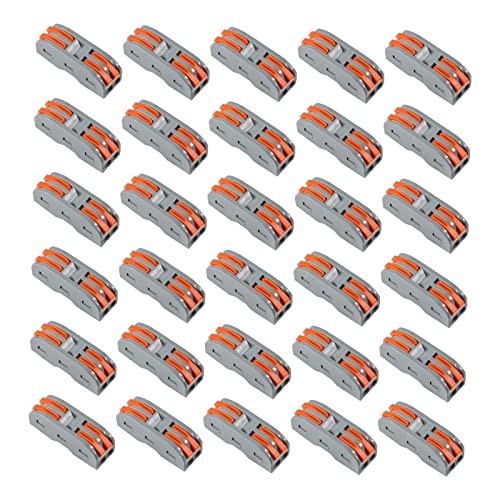

Splicing Any Way You NeedSPL-1 Lever Wire Nut Connectors Can Meet Your Different Demand Because It Can Be Splicing Into 2 3 4 6 or Any Way Conductor Butt Terminals Wire Connectors. It Can Connect Any Combination of Solid, Stranded, and Flexible Copper Wires
Wide ApplicationsSPL-1 Lever Wire Nut Connector is Suitable for Both Soft and Hard Wires, with 0.08 to 4.0 mm²/ 28-12AWG. It is Widely Used in Sockets, Switches, Lamps, Electrical Boxes, Chandeliers,Loudspeakers, Fan Controls, and etc.
Funcionan perfecto, buena conexión y rápida
