SKU:31083368

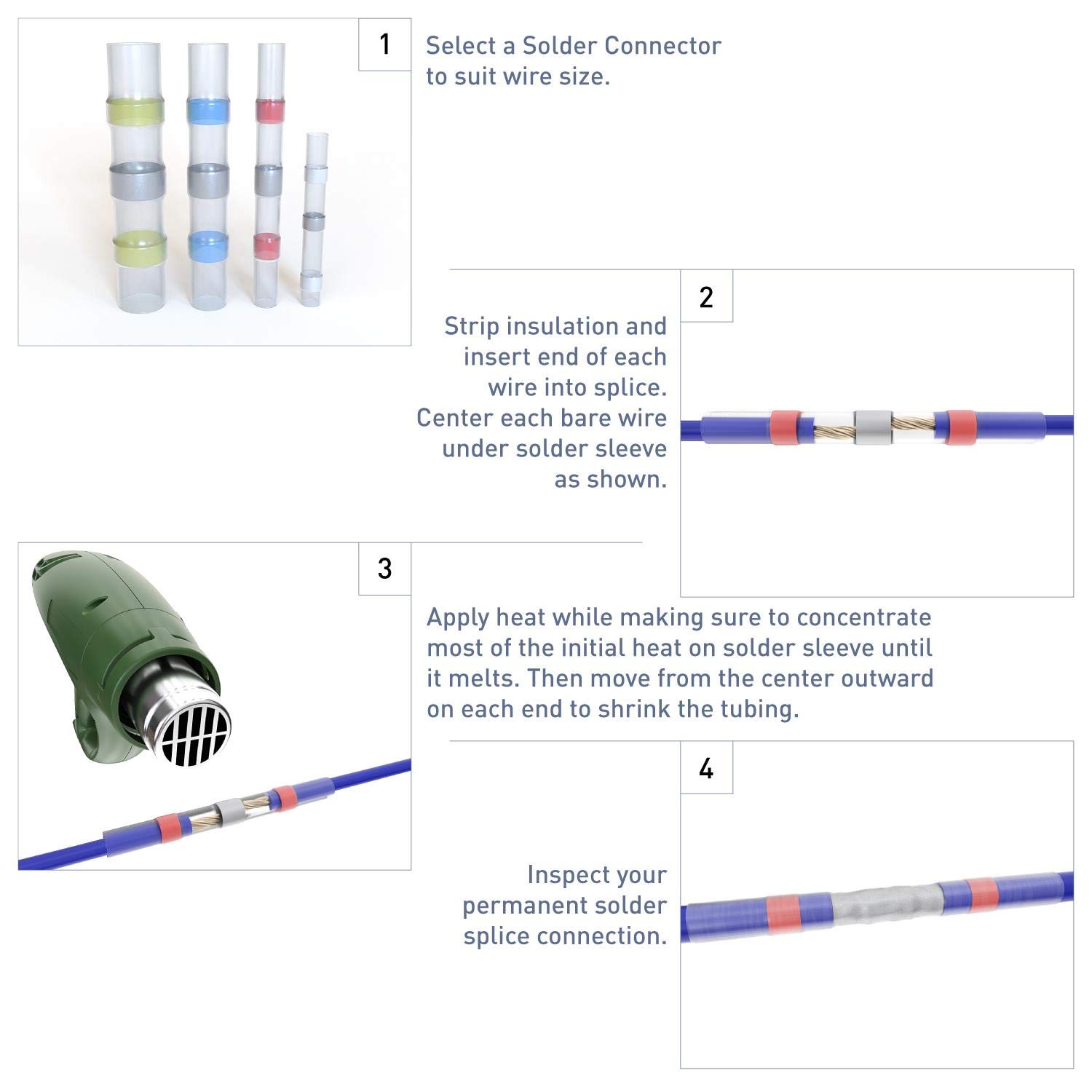

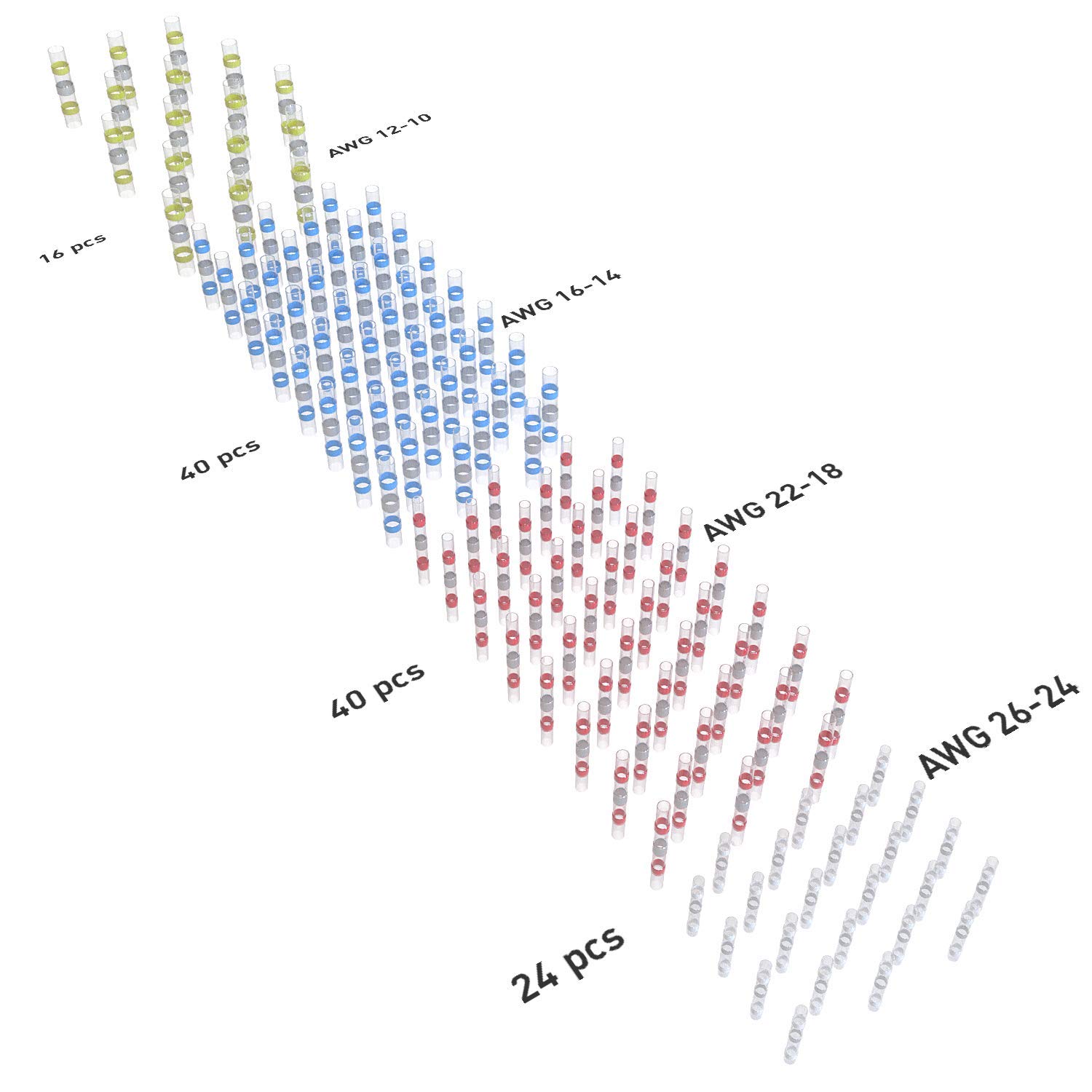

Why E-VOLT is the Choice of Professionals: E-Volt has maintained the highest quality standards and our products are in compliance with ISO 9001:2008, ROHS, SGS, and CEOur insulated solder wire connectors are color-coded with wire gauge fitment size on each connector so you can identify which waterproof connector will serve your needsOur solder seal connectors are compatible with AC and DC current and designed to be used in boats, cars, trucks, stereo audio AV, underground cables and 12-volt accessories What is in the Package Package includes 120 solder wire connectors, compatible with 04 wire fitment gauge sizes (White: 26-24, Red 22-18, Blue 16-14, Yellow 12-10); 24x White Solder Seal Connectors40x Red Solder Seal Connectors40x Blue Solder Seal Connectors16x Yellow Solder Seal Connectors Items NOT in the Package Heat Gun Special Note To get the best result use heat / hot air gunDo not set on a high temperature at the beginningApply initial heat on solder sleeve until it meltsMove from the center outward on each end to shrink the tube Technical Information Temperature Rating Minimum shrink temperature: 176°F / 80°CFull recovery temperature: 281°F / 138°COperating temperature: from 67°F TO 257°F OR -55°C TO 125°C Amperage Rating Highest amperage rating of E-VOLT solder seal connectors are as follow: White (26-24 AWG) 9 AMPRed (22-18 AWG) 19 AMPBlue (16-14 AWG) 27 AMPYellow (12-10 AWG) 48 AMP User Guide for Perfect Connection Select best suited solder connector for your wireStrip insulation and insert end of each wire into spliceCenter each bare wire under solder sleeve shownApply heat while making sure to concentrate most of the initial heat on solder sleeve until it melts. Then move from the center outward on each end to shrink the tubingInspect your permanent solder splice connection E-VOLT White Solder Wire Butt Connectors E-VOLT Red Solder Wire Butt Connectors E-VOLT Blue Solder Seal Butt Connectors E-VOLT Yellow Solder Seal Butt Connectors E-VOLT 200 PC Solder Seal Connectors Kit E-VOLT Red Butt Crimp Connectors Buying Options Buying Options Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 26 4.8 out of 5 stars 34 4.3 out of 5 stars 31 4.4 out of 5 stars 30 4.3 out of 5 stars 56 4.8 out of 5 stars 274 Price — no data — no data — no data $23.98$23.98 $19.98$19.98 $24.98$24.98 Quantity 200 PC 150 PC 80 PC 50 PC 200 PC 200 PC AWS 26-24 22-18 16-14 12-10 26-10 22-16 Shrinkage Ratio 2:1 2:1 2:1 2:1 2:1 3:1 Connector Type Solder Seal Butt Connector Solder Seal Butt Connector Solder Seal Butt Connector Solder Seal Butt Connector Solder Seal Butt Connector Butt Crimp Connector Standard ISO 9001:2008, ROHS, SGS, and CE ISO 9001:2008, ROHS, SGS, and CE ISO 9001:2008, ROHS, SGS, and CE ISO 9001:2008, ROHS, SGS, and CE ISO 9001:2008, ROHS, SGS, and CE ISO 9001:2008, ROHS, SGS, and CE
EFFICIENT SOLUTION E-Volt’s offer’s butt soldering connectors to set up reliable and long lasting joints. It will save you from frustrated and time taking process of making alloy joints by using soldering iron.

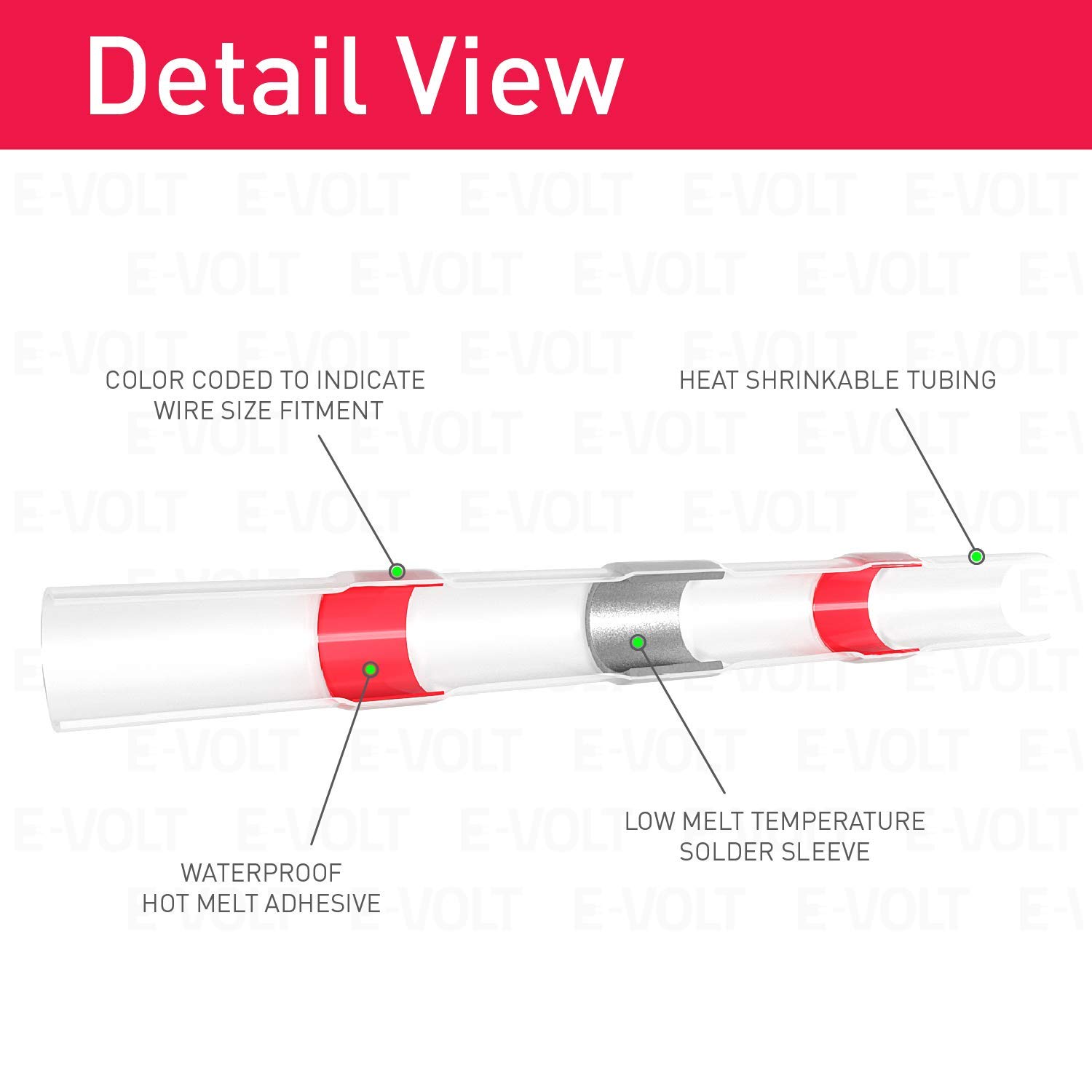

MINIMIZE MALFUNCTIONS Our weather resistant low temperature waterproof solder wire connectors are adhesive lined tubes which will protect joints from fluids, humidity and wet environment. E-Volt’s heat shrink connecting tubes will ensure that there will be minimal equipment malfunctions.
DURABLE SEALED SOLDER TERMINAL Strong and better protected joints will ensure continuous connection with minimum voltage loss. ISO certified heat shrink tube connector will not only make joint strong but will prevent wire corrosion and superior current flow.
ISO CERTIFIED PRODUCT Our electrical connectors are in compliance with ISO 90012008, ROHS, SGS and CE. E-Volt heat shrink butt terminal passes the toughest quality assurance tests before they went out of the manufacturing plant.

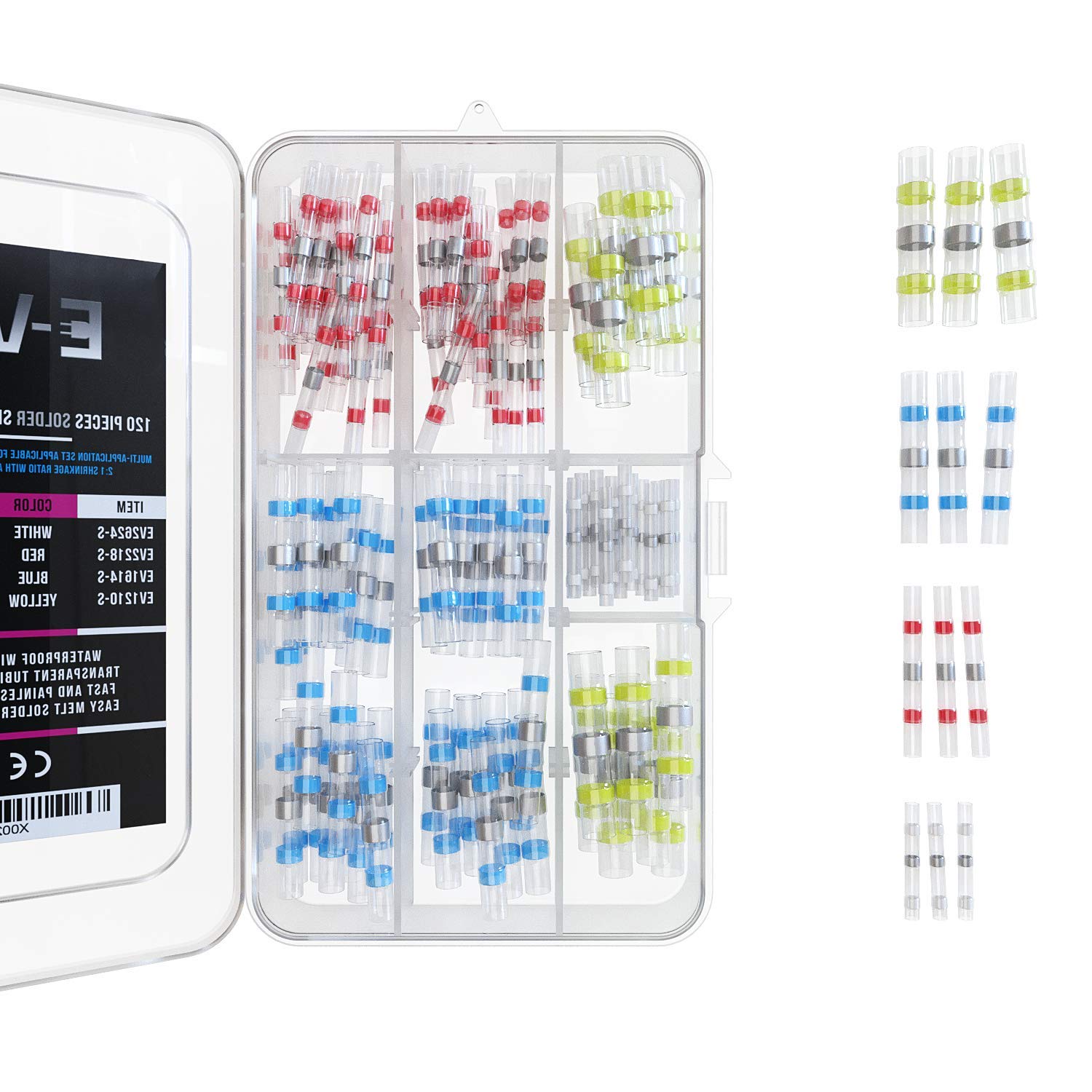

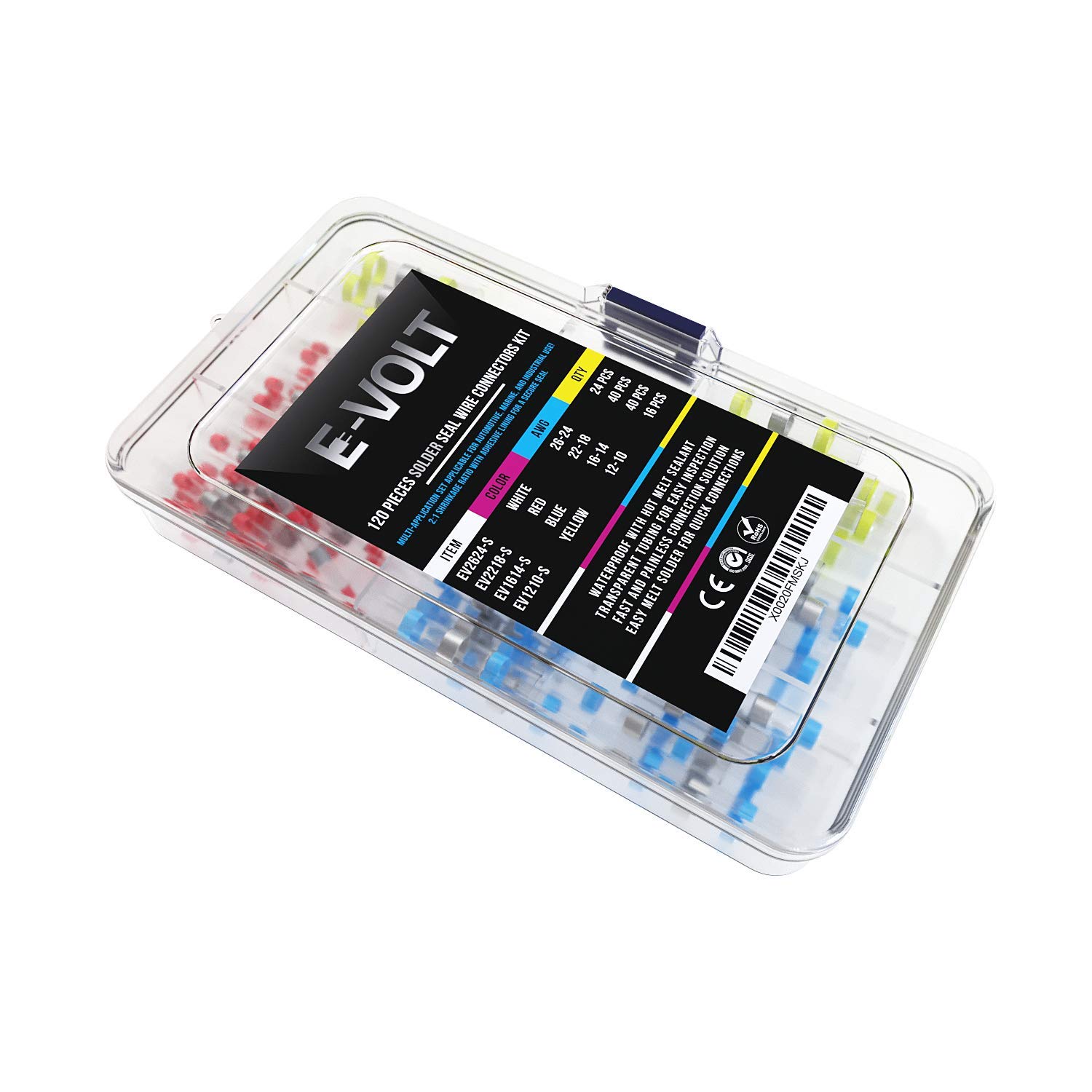

SECURE CASE E-Volt’s solder seal connectors are packed in a durable and translucent jar with screw lid. Your heat shrink electrical connectors will stay organized and safe from dust, dirt and water.
Made the job much easier. Was able to repair and replace part quickly.
