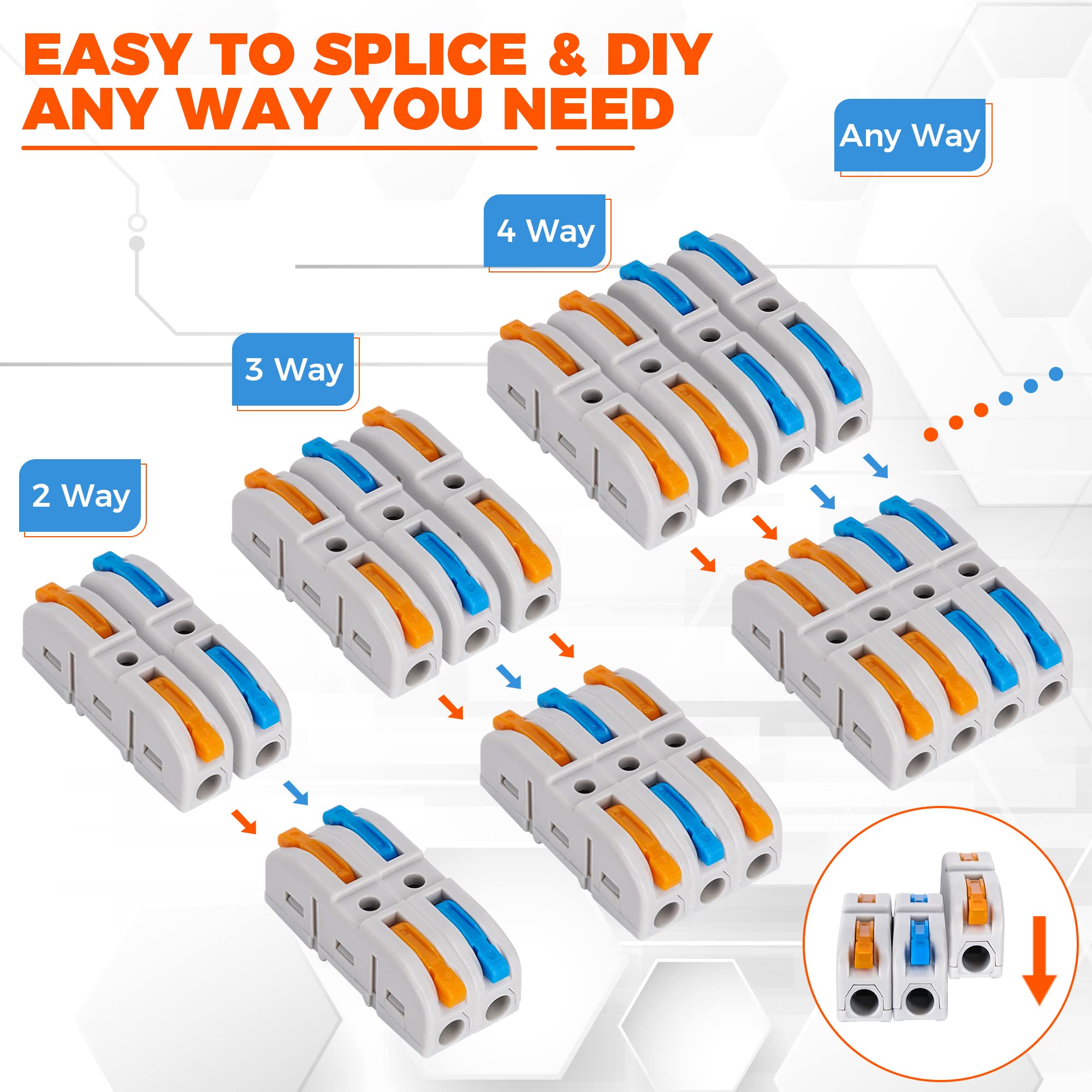

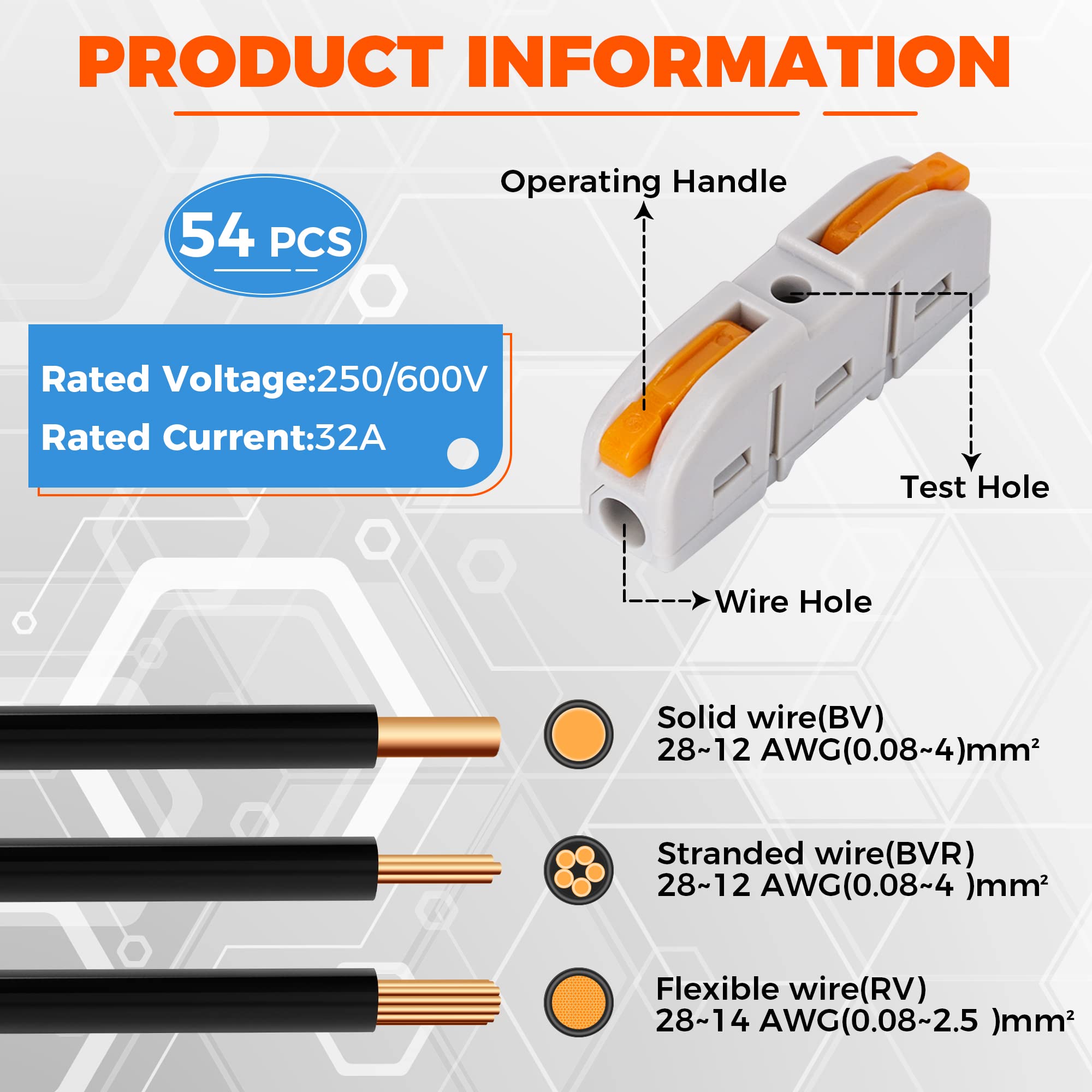

JOMERON is a connectors company with professional experience and advanced technology. We are devoted to providing high quality and safe connectors, to wiring easier and more convenient. DIY any way you need New stronger assembled mode Mortise & Tenon structure JOMERON Lever Wire Connectors Product Specifications Rated Voltage: 250V/600V Rated Current: 32A Solid wire(BV) 28~12 AWG(0.08~4)mm² Stranded wire(BVR) 28~12 AWG(0.08~4 )mm² Flexible wire(RV) 28~14 AWG(0.08~2.5 )mm² Shell Material The housing is made of polycarbonate and polycaprolactam, which is flame retardant and high temperature resistant. Reduce potential safety hazards Internal Contact & Spring The copper tin plated has strong corrosion resistance, maintaining good conductivity. The built-in stainless steel clip spring is used to ensure the wire connection is secure and not easy to fall off Test Hole At the middle of the connector. The test hole can be used to check whether the wires have electricity or not without disconnection 1.Strip conductor to 0.39 inch / 10 mm 2.Lift the lever to a full 90° for opening the clamping unit 3.Insert the stripped conductor 4.Lower the lever to close the clamping unit Motor Household electricity Lamps Loudspeakers
【Practical and Reusable】JOMERON lever wire connectors is a reusable and convenient wire connector. If you need to change other wires or do a temporary electrical testing, just flip the little lever up and pull out the wire what you need and replace, No twisting & no tape at all with these lever wire connectors.
【Safer and Reliable】JOMERON Lever wire electrical connectors are safer than traditional wire connetors 1. The housing is made of polycarbonate and polycaprolactam, which is flame retardant and high temperature resistant. Reduce potential safety hazards 2. The copper tin plated has strong corrosion resistance, maintaining good conductivity. 3. The built-in stainless steel clip spring is used to ensure the wire connection is secure and not easy to fall off.
【Test Hole - Convenient for test】there is a test hole at the middle of the lever wire connector. The test hole can be used to check whether the wires have electricity or not without disconnection. All kinds of standard test probes can be used in the lever wire connectors.
【Easy to Use】 Don't need any tools to connect wires. 1.Strip conductor to 0.39 inch / 10 mm 2.Lift the lever to a full 90° for opening the clamping unit 3.Insert the stripped conductor 4.Lower the lever to close the clamping unit.

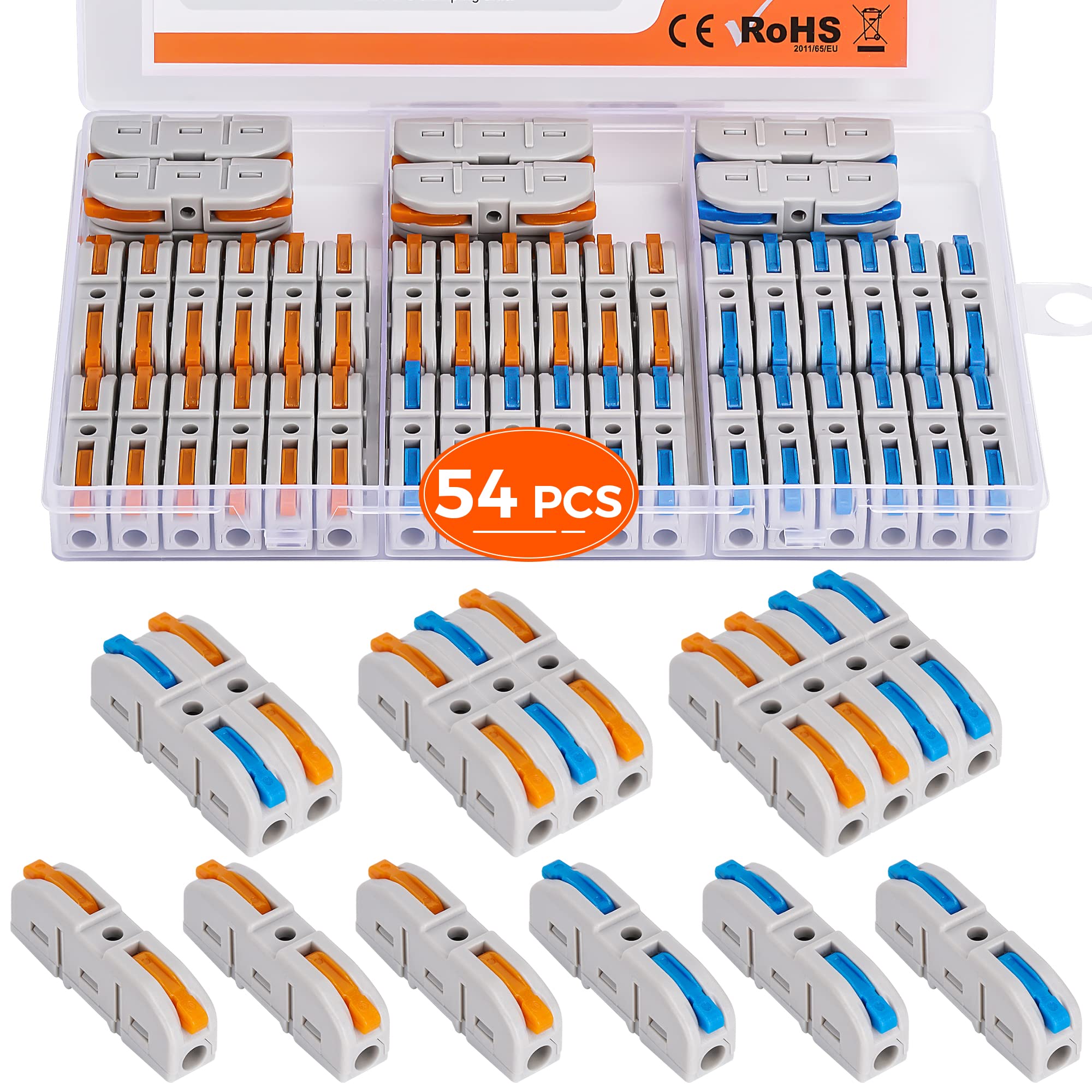

【Universal Compatibility】JOMERON lever wire connectors kit can connect any combination of solid, stranded, and flexible copper wires(0.08~4mm²/AWG28-12). It is commonly used in motor, electrical control, power supply, home applianc, such as sockets, switches, lamps, electrical boxes, chandeliers, cars, loudspeakers, fan controls etc.
I wish I had these YEARS ago! So much easier than wire nuts.
