SKU:87004623

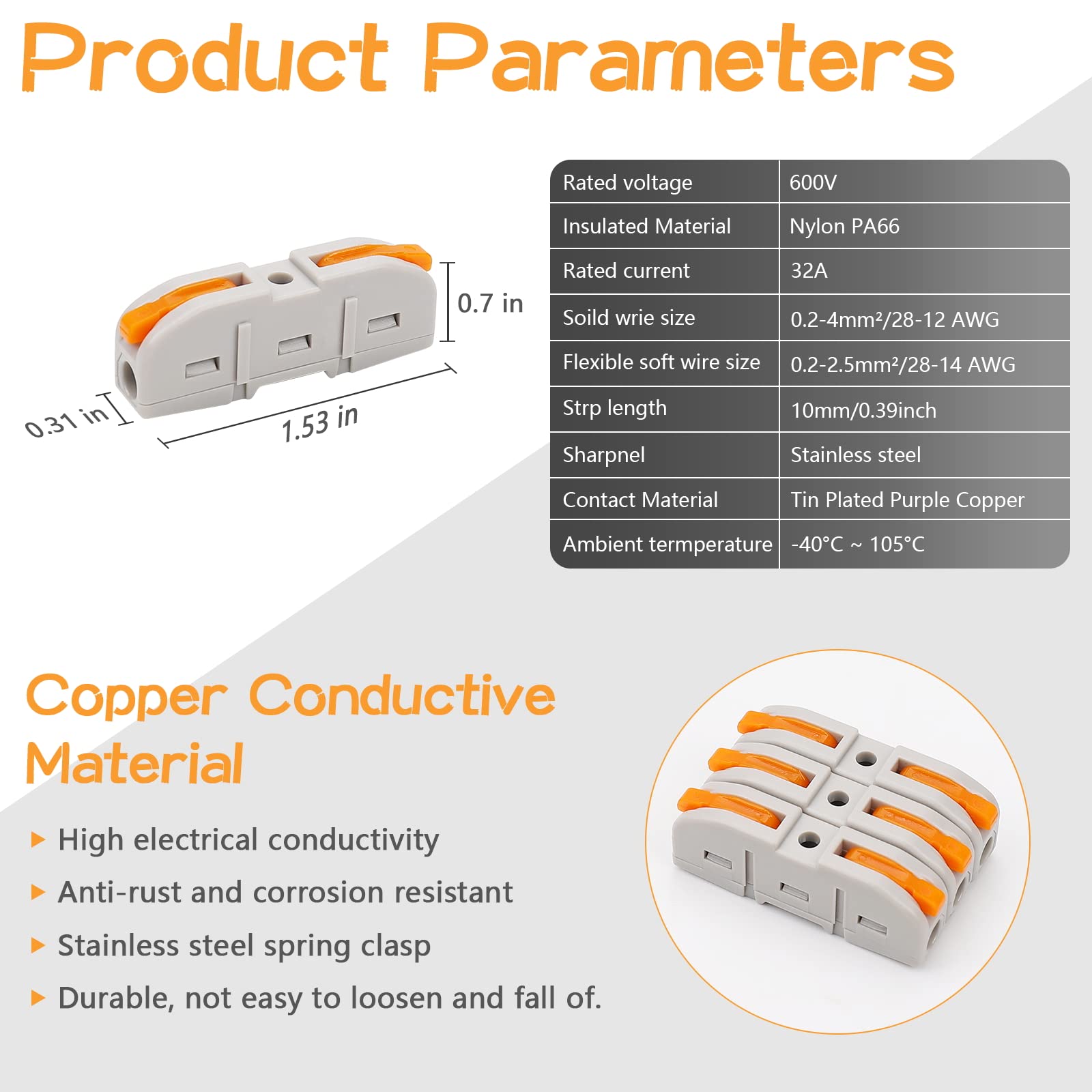

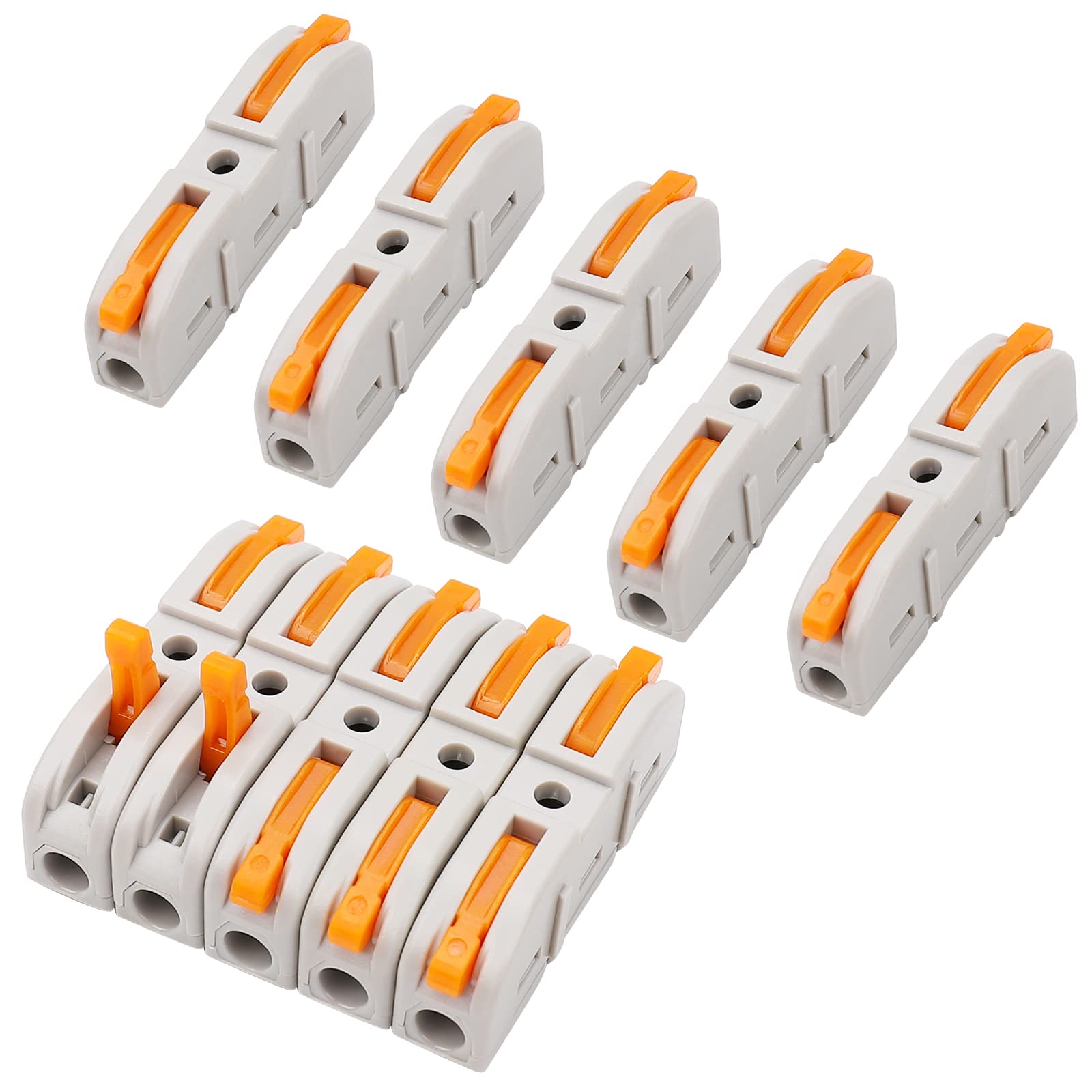

20Pcs 1 Conductor Compact Wire Connectors Splicing Connectors, Splicing Connectors for Circuit Inline 28-12 AWG (Orange) Features: ▸Push-Wire Structure, Plug and play quick connecting. ▸Low installed cost and safe operation. ▸The operating lever avoids the need for tools. ▸Corrosion resistance, high-temperature resistance and aging resistance. ▸Reusable conductor compact wire connectors. Specifications: Rated voltage: 600V(1 in 1 out) Rated current: 32A Applicable wire: 0.2-2.5（4）mm² /AWG 28 -14（12） Material of conductive part: electrolytic copper tin plating Clamping spring: stainless steel Shell: flame retardant PA66 insulating material Max Operating Temperature: -40°C ~ 105°C Package Include: 20 Pcs Compact Wire Conductor Connectors Notice: 1. Only one cable of the same type can be inserted into each terminal. 2. Do not insert Live wire (L) and Neutral wire (N) into the same terminal, this may cause a short circuit. 3. Please use an electric pen to verify that its power sup.
▸ Shell Material Quality and durable PA66 insulating material. Contact material Tin plated Copper. Stripping Length 9mm-10mm/0.35-0.39inch

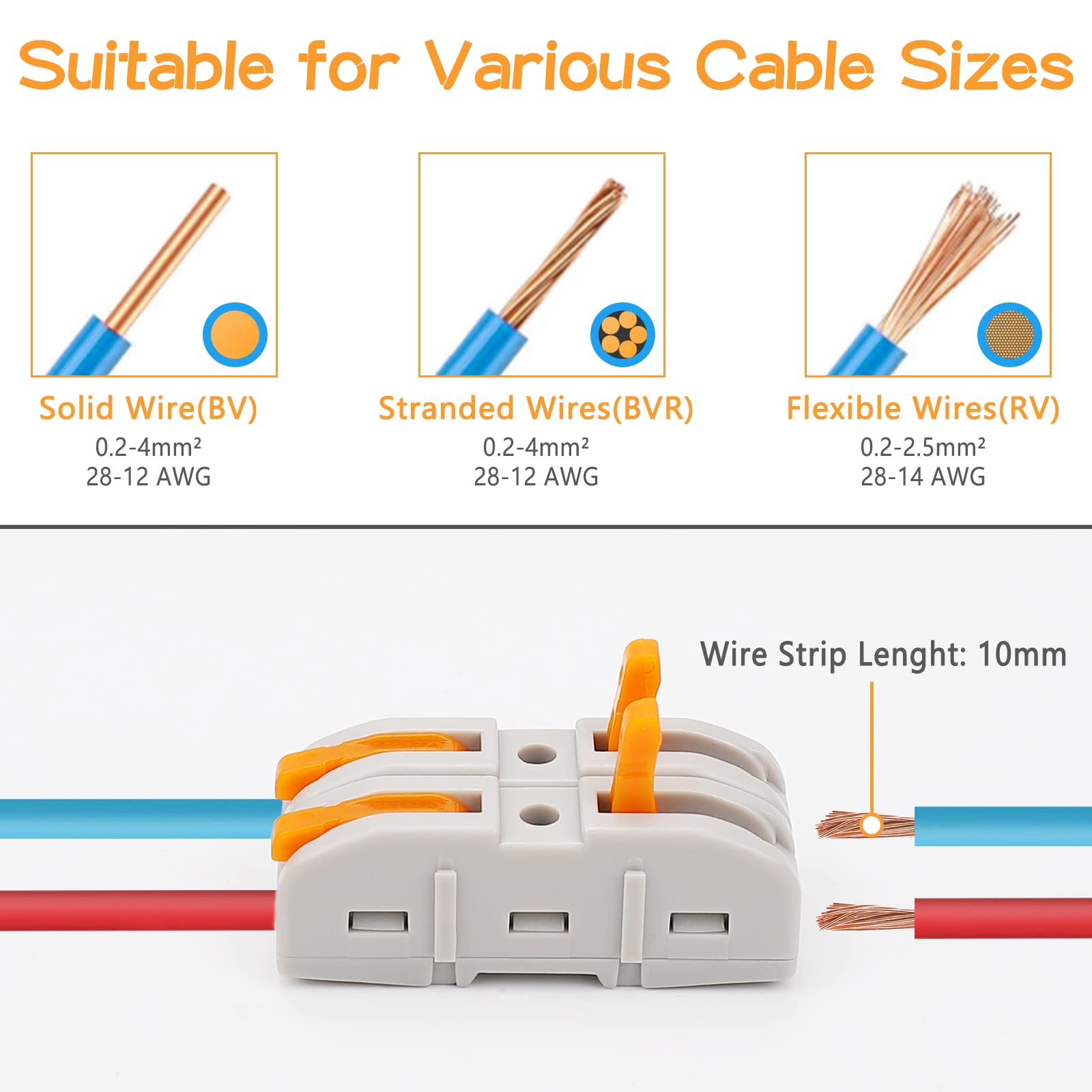

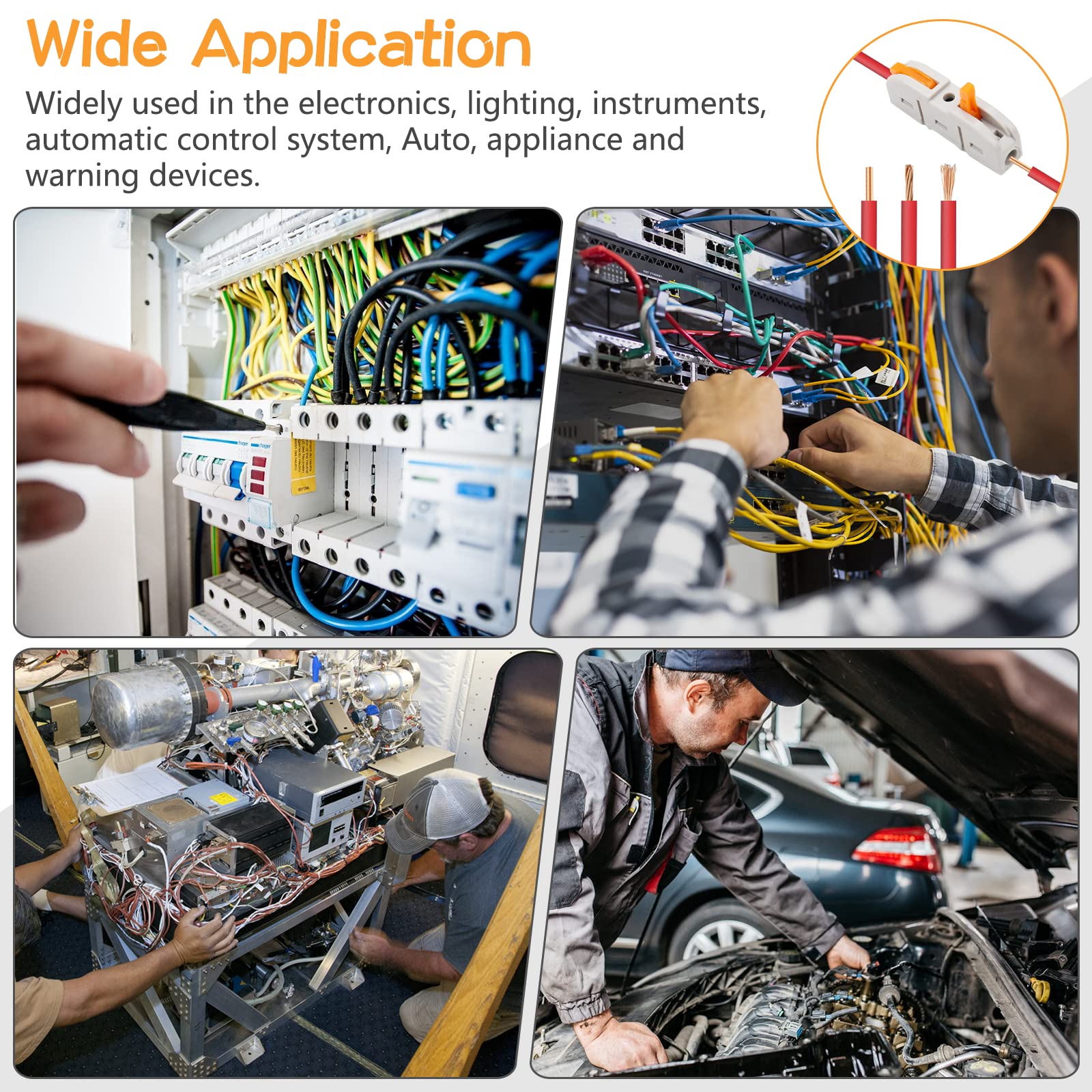

▸ Application scope Our wire splicing connectors are suitable for solid wire with 0.2 to 4 mm²/ 28-12AWG and for flexible wire with 0.2 to 2.5 mm² / 28-14AWG. Can be used for motor, electrical control, power supply, home appliance, lighting, machinery and other wire connection parts.

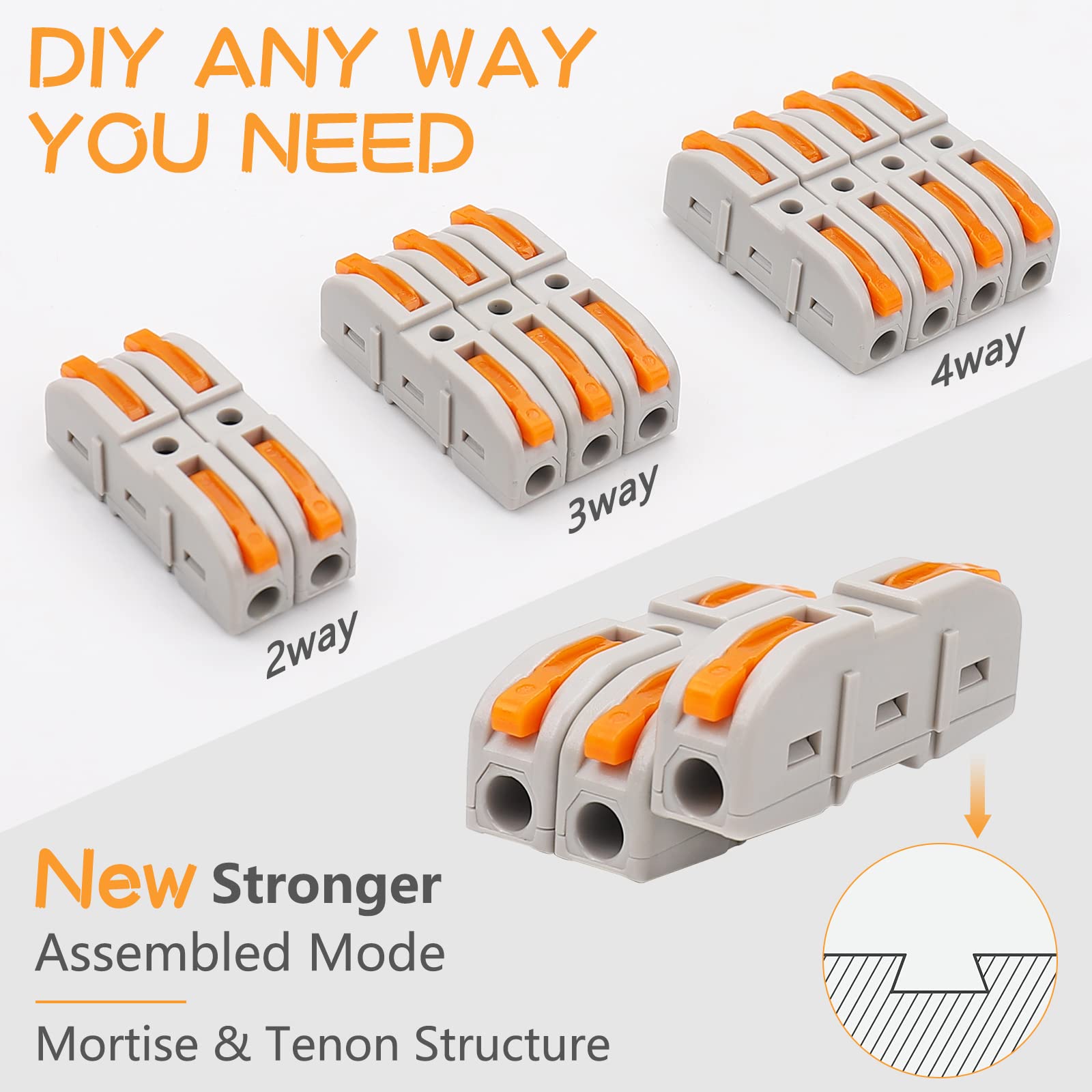

▸ Product Features The 1 conductor compact wire connectors are designed to be assembled into 2 way, 3 way and any way you need. Each junction has an independent shrapnel and different wires are managed separately.

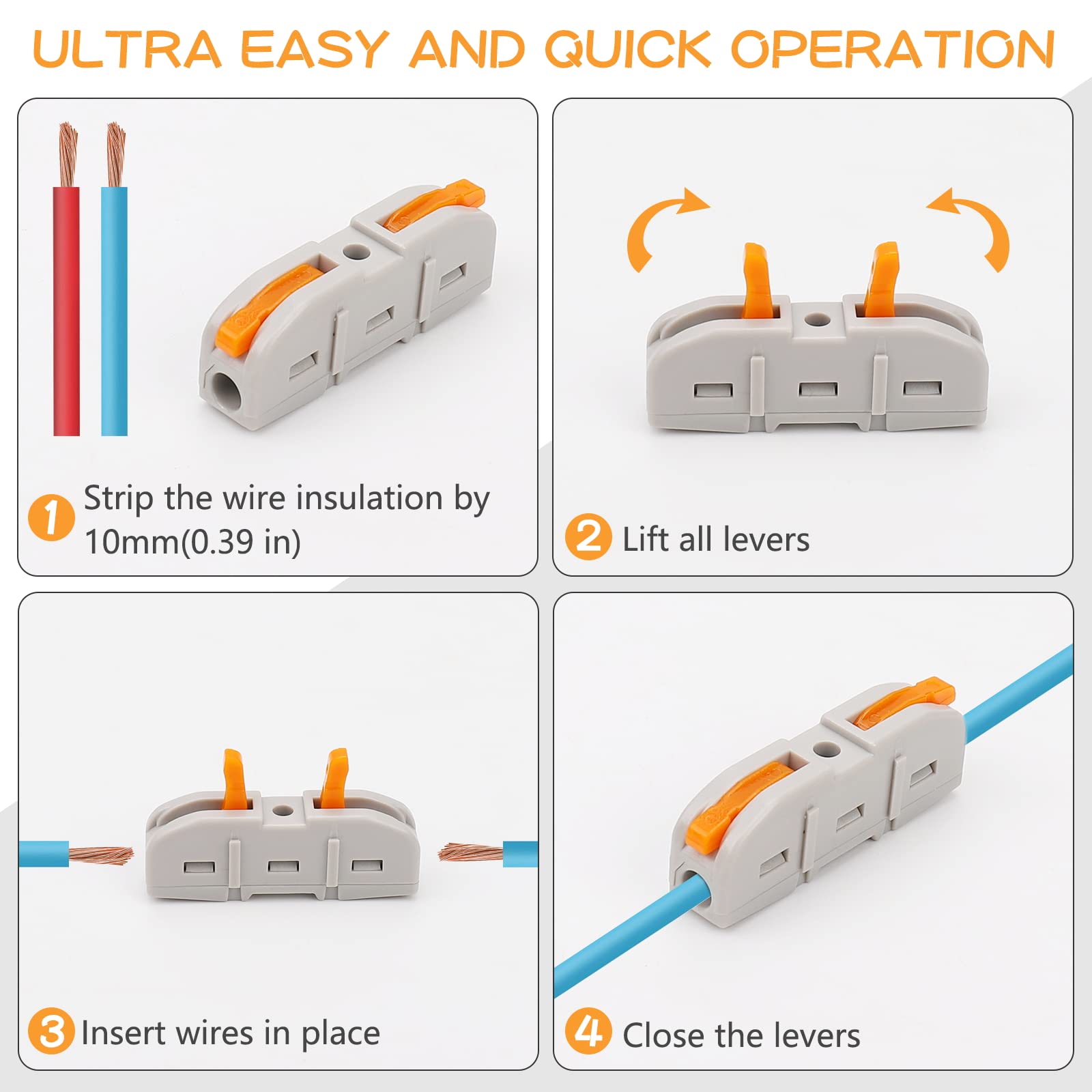

▸ Easy to Use Don't need any tools to connect wires, simply use the hand to connect the wire. Much easier compared with traditional electrical tape and connectors.
▸ Time- and Space-saving The lever wire connectors replaces the traditional electrical tape and butt-type electrical butt-type, and technological innovation reduces the wiring time by 70%. The maintenance cost is low, the connection is convenient, and it saves time and space.
I used them to connect size 14 stranded speaker wire to size 18 stranded wire linking a safety switch from a Little Giant pump that removes water from my whole house humidifier. So far so good.
