SKU:94690011
Non Insulated Butt Connectors SVAAR Copper Butt Connectors 200pcs Non-Insulated Butt Splice Connectors,Bare... SVAAR 380PCS Non-Insulated Butt Connectors Kit Butt Splice Connectors Uninsul... 500PCS 26-6 AWG Non-Insulated Butt Connectors Uninsulated Butt Splice Wire Co... 12-4 AWG Non-Insulated Butt Connectors 132 PCS Butt Splice Connectors,4/6/8/1... 90PCS 4-12 Gauge Non-Insulated Butt Splice Connectors 5 Types Gauge 4/6/8/10/... 26-12 Gauge Heat Shrink Butt Connectors 210 PCS Pre-Insulated Butt Splice Con... Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 166 4.6 out of 5 stars 375 4.7 out of 5 stars 166 4.7 out of 5 stars 166 4.7 out of 5 stars 119 4.9 out of 5 stars 50 Price $24.99$24.99 $26.99$26.99 $36.99$36.99 $36.99$36.99 $36.99$36.99 $14.99$14.99 Style Non-Insulated Butt Connectors Non-Insulated Butt Connectors Non-Insulated Butt Connectors Non-Insulated with 3:1 Heat Shrinks Flared End Butt Connectors Pre-Insulated Heat Shrink Butt Connectors Type Seamless, Crimp Seamless, Crimp Seamless, Crimp Seamless, Crimp Seamless, Crimp Seamless, Crimp Barrel Material Bare Pure Copper Tinned Copper Bare Pure Copper Tinned Copper Bare Pure Copper Tinned Copper American Wire Gauge 26-6 A.W.G. 26-6 A.W.G. 26-6 A.W.G. 12-4 A.W.G. 12-4 A.W.G. 26-12 A.W.G. Quantity 200 PCS 380 PCS 500 PCS 132 PCS 90 PCS 210 PCS Butt connector terminals are used to mate, connect, or terminate a single wire or multiple wires. These connectors are, essentially, parallel terminals designed to connect two wires together or connect one wire to two different wires. A butt connector can also be referred to as a butt splice due to its design and use. Professional Butt Splice Wire Connectors kits for your next wiring project. Material： Butt Splice Wire Connectors are made of T2 low resistivity purple copper with Tin-plated.Tinned cooper barrels ensure maximum current flow.100% ANNEALED COPPER：Butt connectors are easy to crimp and will not split.STRONG CRIMPS：Thick, seamless butt connector barrels ensure super strong crimps. PURE TINNED COPPER Pure copper ensures the highest conductivity. Protection against corrosion. Increased current flow and No voltage drop Wire-stop structure is good to insertion wire in right place to ensure the effect of compression Standard(s )for Safety: UL 486A-486B and CSA C222 No. 65-13 Wire Connectors. Standard(s )for Safety: UL486C and CSA C22.2 No. 188-13 Splicing Wire Connectors. 1st: Confirm The Quantity WHY DO WE PACKAGE OUR PRODUCTS WITH SMALL BAGS AND STORAGE BOX？ CHILD PROTECTION：With packaging, the small bags and storage box can be protected children,reduce children's contact possibilities.Small parts. Not for children.Please keep out of reach of children. 2ed: Put The Single Size In The Bag BAG STORAGE FUNCTION：Without packaging, products will spill, scatter or be lost.FIRM STORAGE BOX：With packaging,to protect the products from damages. and the product can be protected during transport and distribution. 3rd: Packed In A Plastic Box ALL YOU NEED IN ONE PACKAGE: 60pcs x BN 1.25 (22-16 AWG) Max 19Amps40pcs x BN 2 (16-14 AWG) Max 27Amps40pcs x BN 3.5 (14-12 AWG) Max 37Amps30pcs x BN 5.5 (12-10 AWG) Max 48Amps20pcs x BN 8 (8 AWG) Max 62Amps10pcs x BN 14 (6 AWG) Max 88Amps Total 200pcs in one Package.

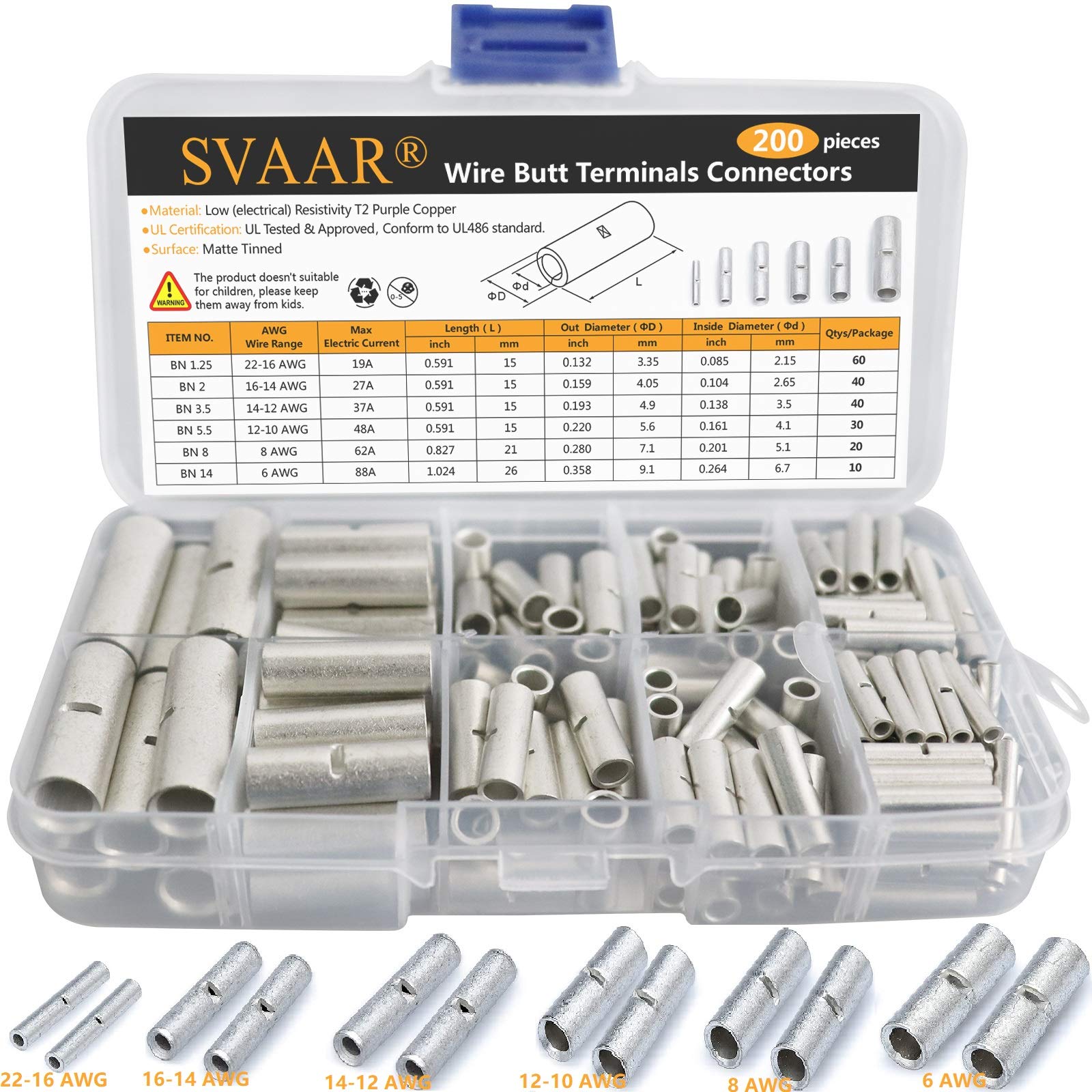

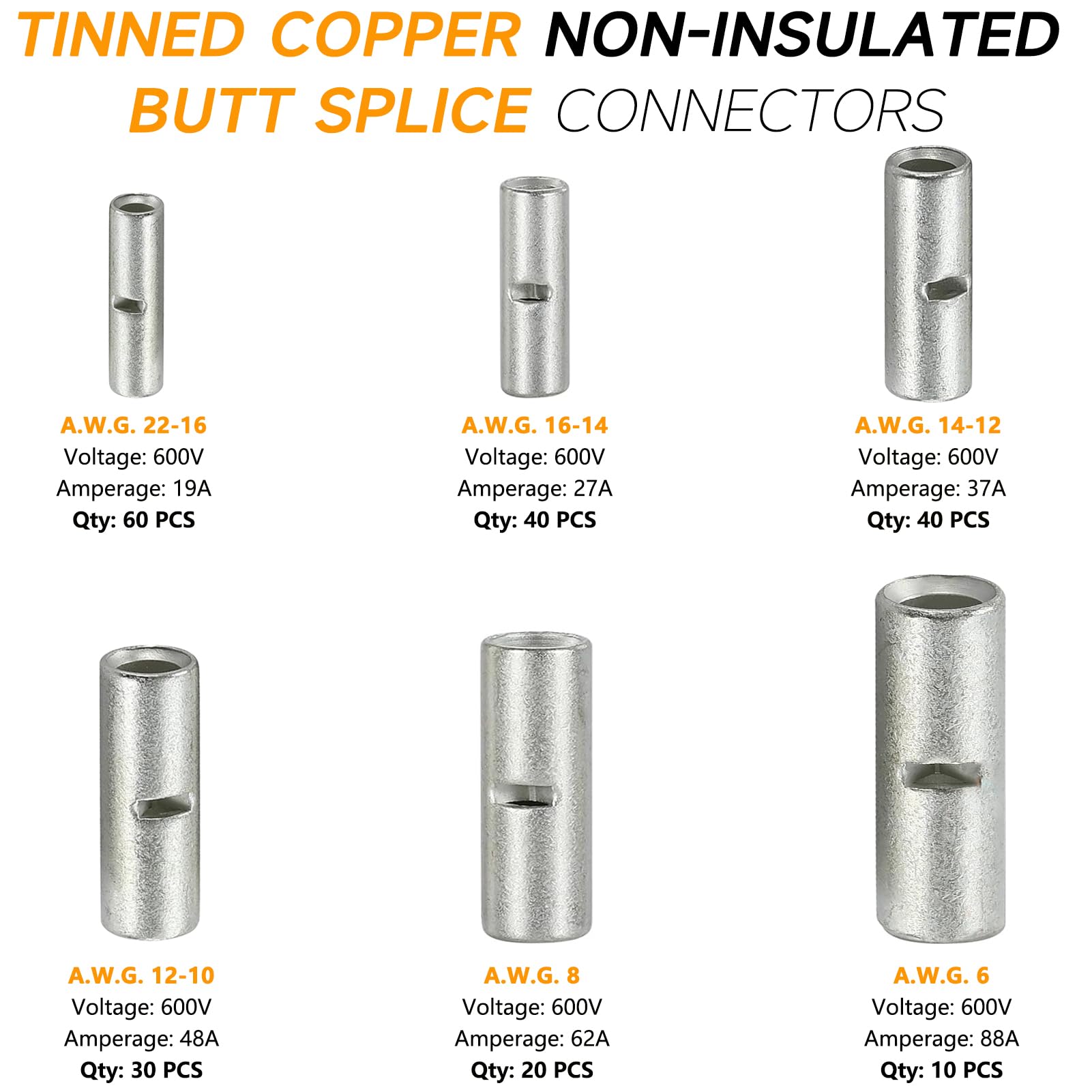

GREAT ASSORTMENT - Uninsulated butt splice connectors in the right gauge available for 22-6 AWG wires. This wire splice kit contains 6 sizes 6 AWG*10PCS, 8 AWG*20PCS, 12-10 AWG*30PCS, 14-12 AWG*40PCS, 16-14 AWG*40PCS, 22-16 AWG*60PCS butt splices. Rated For 600 Volts. Designed to fit solid or stranded Copper wire. BUT NOT RATED FOR ALUMINUM CONDUCTORS. The Wire Splice Connectors assortment includes larger specifications and more quantities than the others, 6 Gauge and 8 Gauge butt connectors are included in the set and are therefore ideal for your application. Our butt connectors crimp way better than others. See for yourself in one of your own projects.

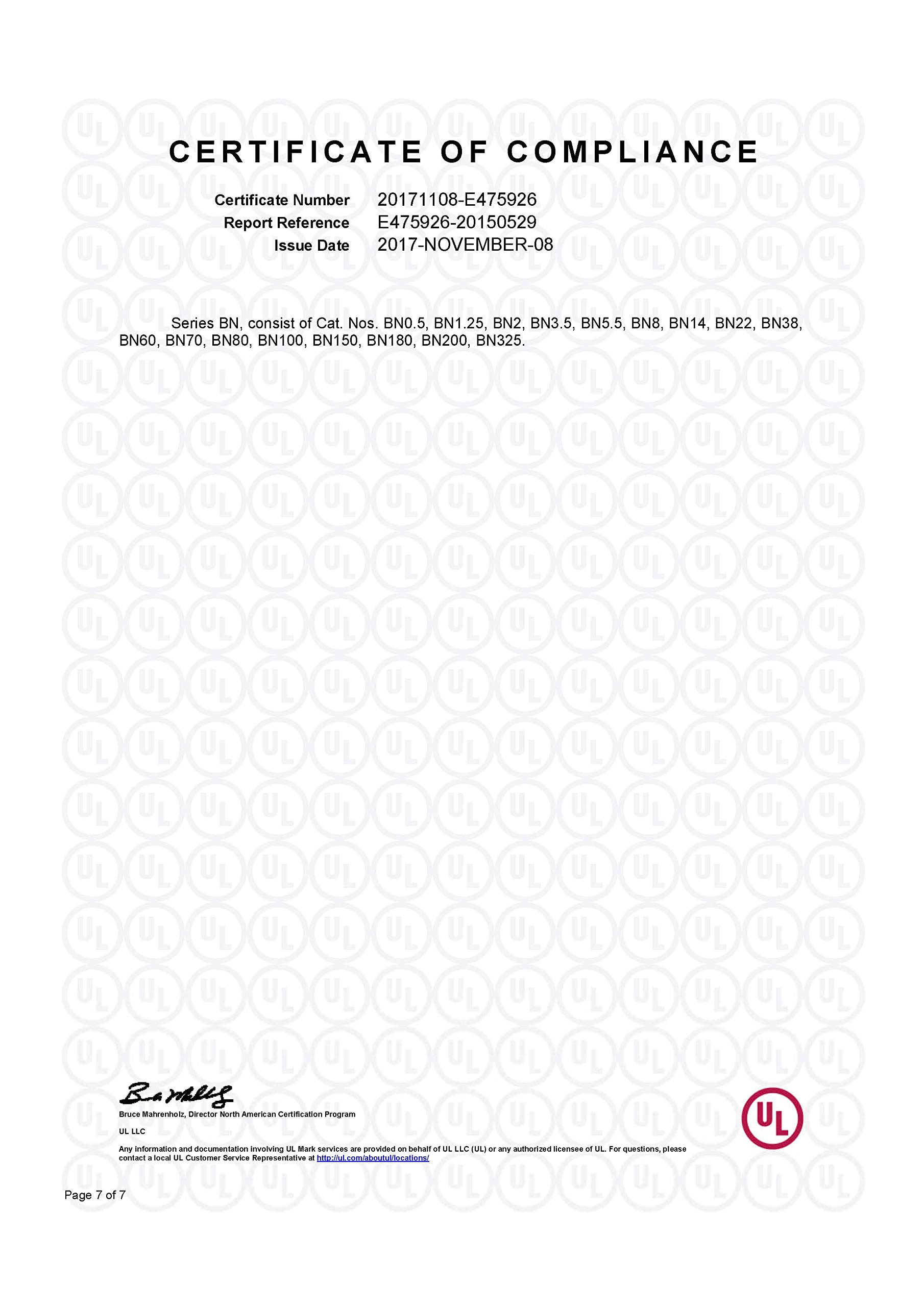

SAFER DESIGNED-STRONG CRIMPS - Heavy Duty Seamless Wire Butt Splices designed for high amperage applications, Conform To UL486 Standard. Thick, Seamless Pure Copper Barrels ensures the highest conductivity and super strong crimps. Doesn't split when crimped, ensures rock solid crimps and wire will not pull out. This Butt Splice wire connectors ensure you get the strongest, longest lasting, and highest performing electrical connections between every wire, every time.

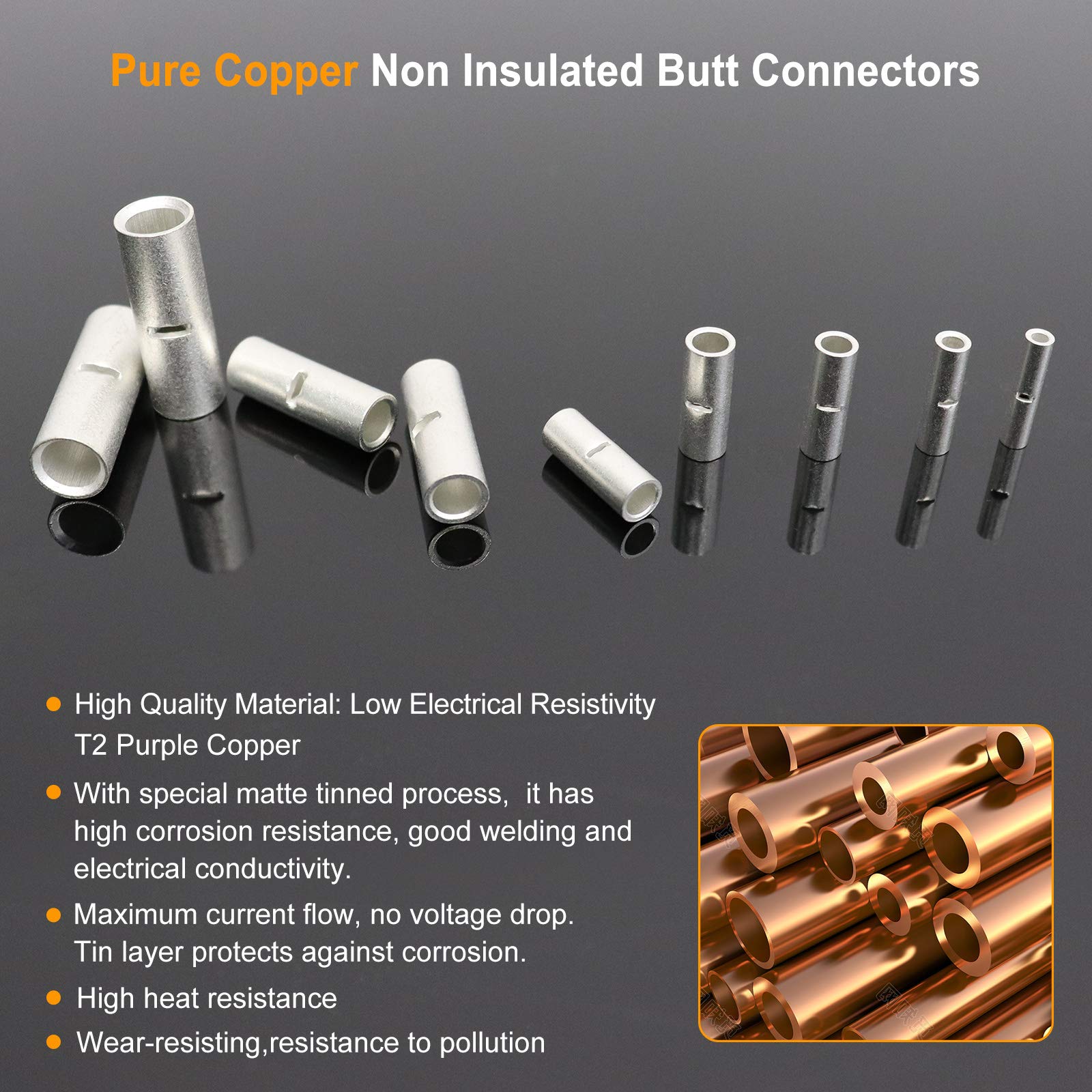

PURPLE COPPER MATERIAL - SVAAR Butt Splice Connectors are manufactured from 99.9% High Conductivity Purple Copper(Cu-ETP/C11000) which provides the best electrical properties possible. Pure Copper is renowned for its high electrical conductivity and exceptional purity, enabling efficient power flow and optimal performance for your electrical connections. Its the preferred choice for electrical connections.
MATTE TIN PLATING - SVAAR Butt Splice Connectors are made of high-quality C11000 electrolytic copper with special matte tinned process. A thin layer of tin will protect your butt splices from corrosion. Tin coated copper connectors are ideal for marine and humid environments because the tin coating protects the butt connectors from oxidation and corroding. Its the preferred choice for electrical connections.
EXCELLENT CONDUCTIVITY - Each Copper Butt Connectors has a Thick, Seamless, one piece pure copper tubular construction. Pure copper provides the highest electrical performance to price than any other metal (Aluminum Alloy or Brass). Pure copper Butt Splice Connectors provide the best performing electrical connection between your power sources and your power cable.
100% ANNEALED COPPER - All SVAAR Butt Connectors are made of 100% annealed electrolytic grade copper. Butt Connectors made by SVAAR are annealed as part of an additional manufacturing stage. Our Butt Splice Connectors are annealed to a specific temperature to improve material properties and better crimping. This means we can reduce any hardening and tension in the material, as well as reduce the risk of breaking during crimping.

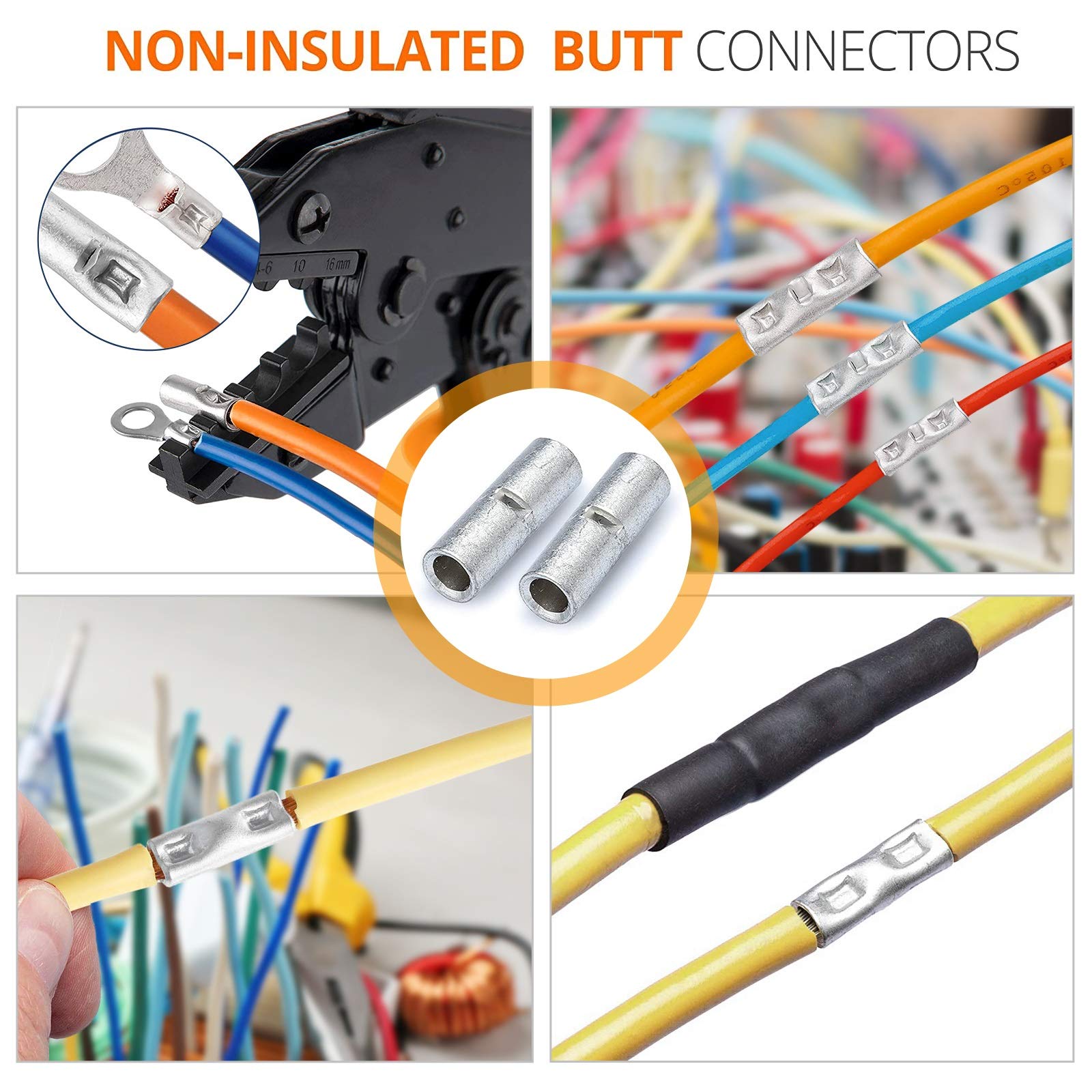

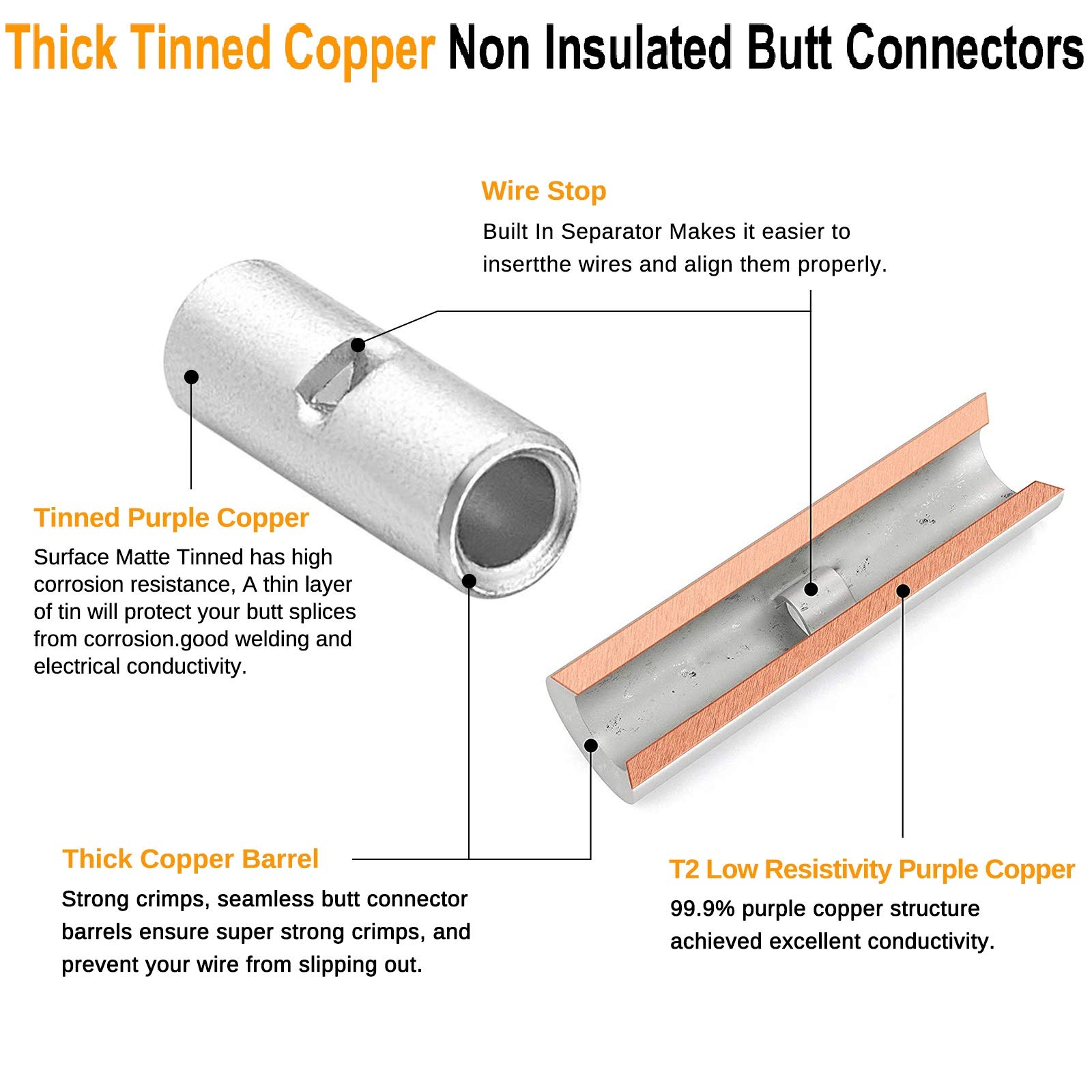

EASY AND SAFE USE - The Butt Splice Connectors uses chamfered barrel ends to provide fast easy wire insertion from both ends and a built in wire stop for correct positioning. Butt Connectors are works good when building custom wire harnesses or making repairs to existing wiring. They are easy to install, effortless to maintain, and built to give you more safety, power, and performance than any other way to wire.

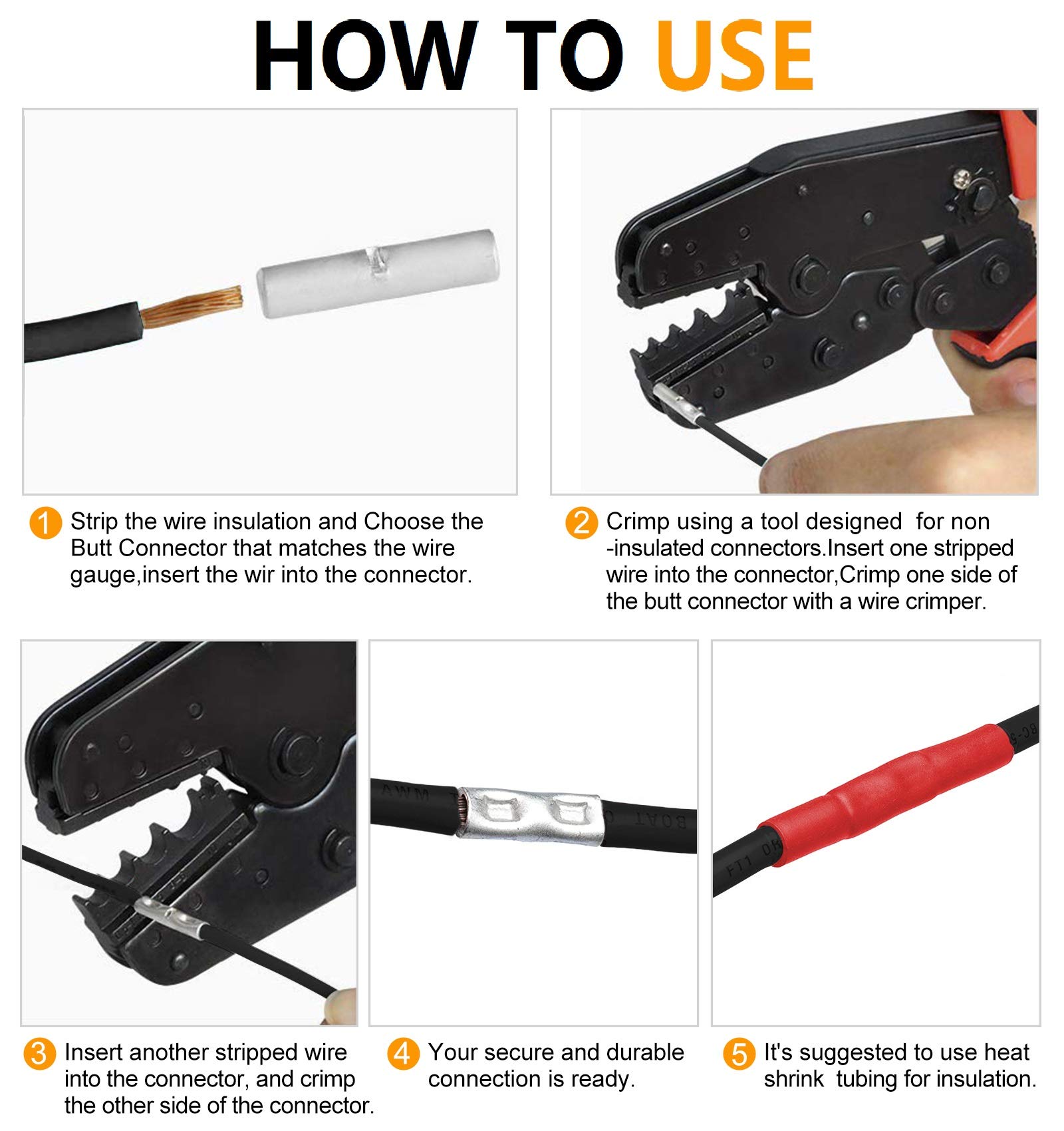

HOW TO CHOOSE AND USE IT - SVAAR Butt Splice Connectors provides freedom to choose from a wide range of wire sizes, that fit your requirements and applications. When crimping Connectors, select the right Butt Connectors that matches the wire. Some cable manufacturers oversize the gauge of their cables (especially common with audio cables), may not be a direct fit. Recommend to check product dimensions to ensure a proper fit of the connectors before making a purchase.
RECOMMEND HEAT SHRINK TUBING - Non Insulated Butt Splice wire connectors ensure connections get the strongest, longest lasting, and highest performing electrical connections between every wire, every time. For best results we recommend insulating your connections with dual wall, adhesive lined heat shrink tubing.
BUYER CONFIDENCE - Always match the size and gauge of terminals, cables, and lugs to ensure a proper fit. It’s important use with a compatible copper cable. Recommend to double-check the dimensions and ensure they’re accurate before making a purchase so that your connection will indeed be secure and long-lasting. That is to say we would like the opportunity to make it right for you. Here's everything you need to get started.
I do not understand how someone can give these good quality uninsulated butt connectors a negative or less than a 5 star review. They're very reasonably priced. They come in a nice size assortment. They're very easy to work with and produce a very nice and strong crimp.The people giving these butt connectors less than a 5 star review probably don't know how to crimp or are using a cheap quality crimping tool. To get the best crimp out of any wire terminal or butt connector is to use a good quality crimper. I have 2 crimpers that I use to crimp these butt connectors. They are Thomas & Betts model# WT111M and Klein Tools model# 1006. I get great looking strong crimps with either of these 2 crimpers. You also need to know how to use the crimping tool. Make sure you use the correct slot of the crimping tool for the wire size you're crimping and that you have the butt connector centered in middle of the trough before crimping.
