SKU:99074593
Wire Cross section: 0.08~4.0mm²/28-12AWG(solid), 0.08~4mm²/28-14AWG(stranded)Shell Material: Modified nylon(PA66)Guide Strip: Electrolytic copper (Surface tin plating)Spring: Nickel chromium alloy steelProduct Size:(5 Conductor) 27(L)*21.3(W)*14.5(H)mm,(3 Conductor) 17.5(L)*21.3(W)*14.5(H)mm,(2 Conductor) 12.5(L)*21.3(W)*14.5(H)mmMaximum Operating Temperature: 105℃Rated Voltage: 250V/4KVRated Current: 32APackage include:PCT-215 (30 Pack),PCT-213 (30 Pack),PCT-212 (30 Pack)HOW TO USEStrip wire lead to 9-10mm, open clamping unit and insert your wire lead, lower lever to close the clamp.It is made of nylon PA66 modified with high quality flame retardant insulation material, which has the advantages of long life, corrosion resistance, aging resistance, high pressure resistance, insulation and flame retardant.It is widely used in building wiring, household appliances, lighting, machinery and other wire connecting parts, where space is very valuable for all required connections.
【Safety Material】It is made of nylon PA66 modified with high quality flame retardant insulation material, guide strip is electrolytic copper (surface tin plating); Which has the advantages of long life, corrosion resistance, aging resistance, high pressure resistance , insulation and flame retardant; The lever wire connectors can be used up to an ambient temperatures of 105°C, better conductive properties.
【Universal compatibility】Are widely applied to connect any combination of solid, stranded, and flexible copper wires, ideal for compact and complex applications. Suitable for single strand hard wire 0.08~4mm²/28-12AWG, and the multiple strand flexible copper wire 0.08~2.5mm²/28-14AWG. They work with most every gauge of normal household wiring sockets, switches, cars, loudspeakers, lamps, electrical boxes, chandeliers, fan controls, and much more.
【Reliable & Reusable】Lever wire connectors inline splices can be managed separately for different wires to avoid short circuit and fires caused by aging of the staggered band of the wires. It can be recycled several times and can be removed when not in use.

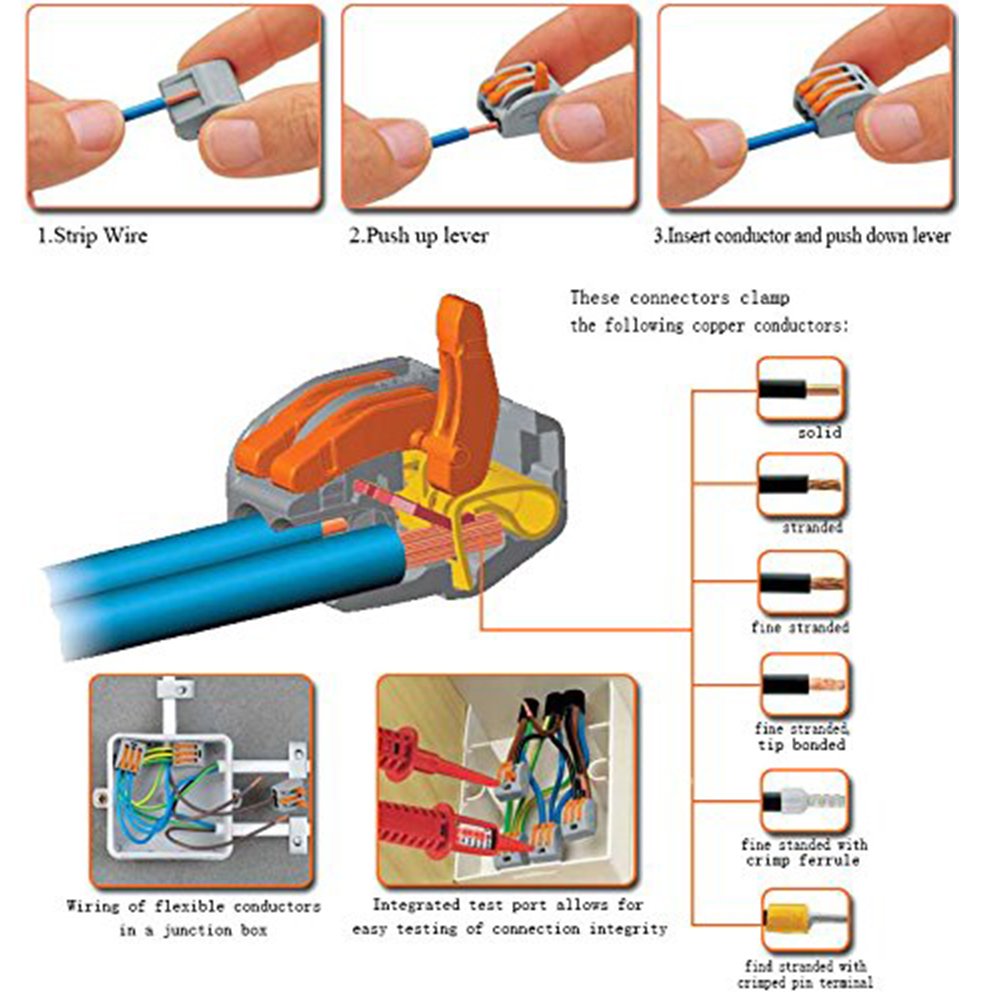

【Easy to operate】Strip wire lead to 9-10mm, open clamping unit and insert your wire lead, lower lever to close the clamp. Instead of traditional electrical tape and intertwined butt connectors, technological innovation reduce wiring time by 80%.

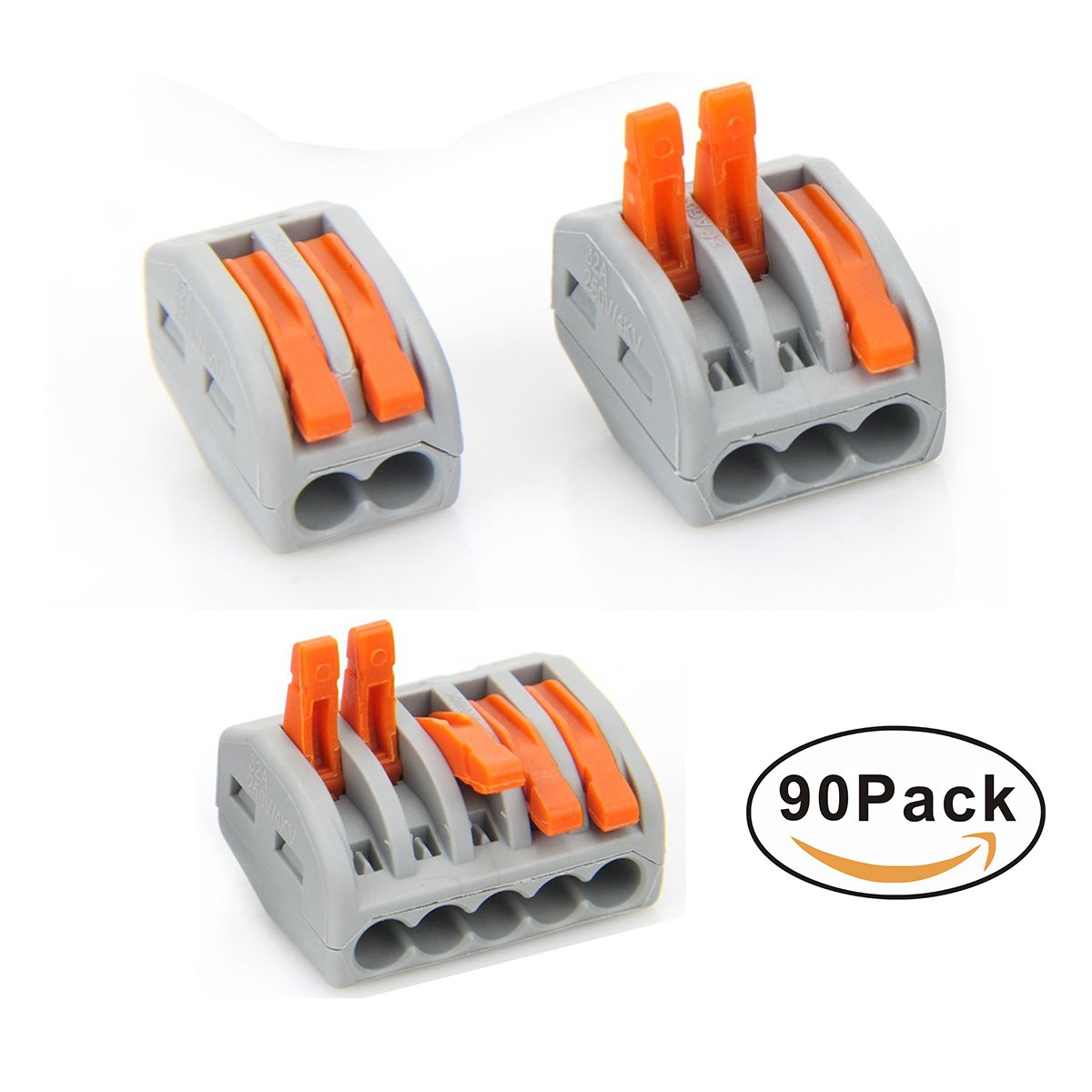

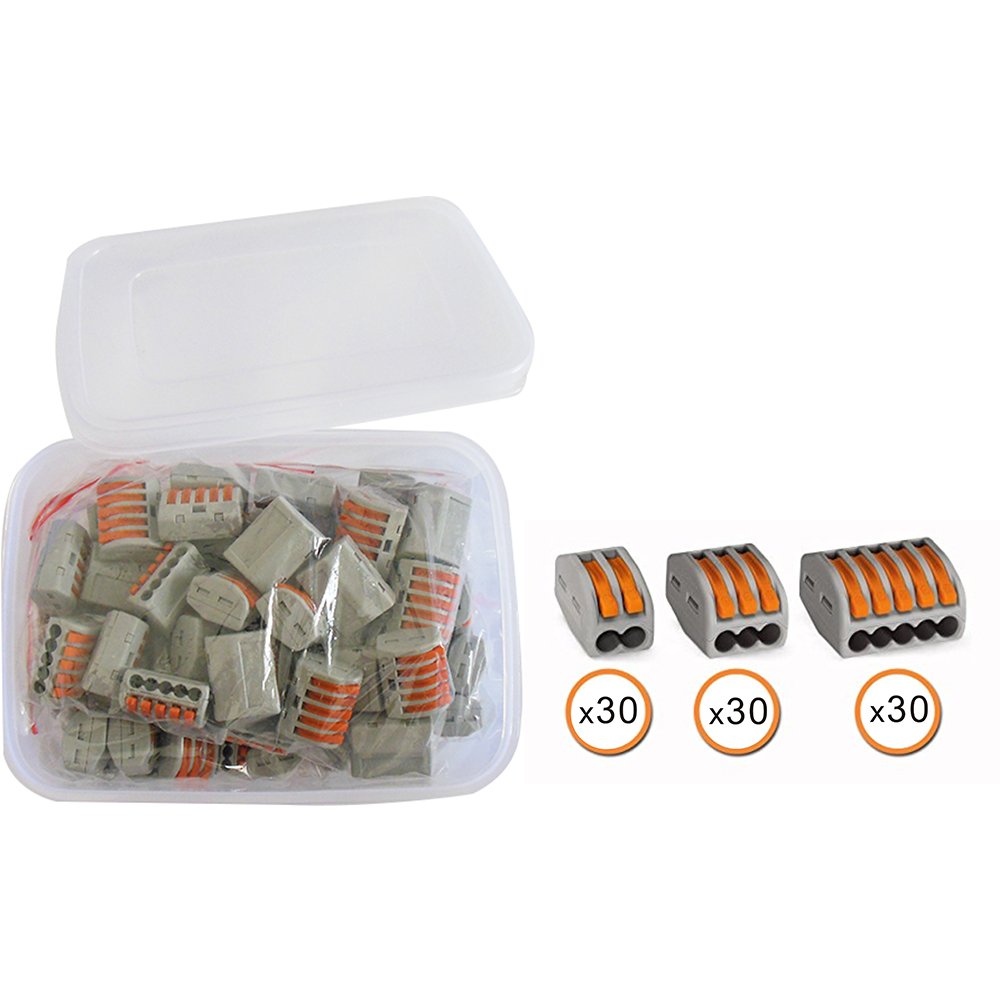

【Package include】PCT-215 (30 Pack), PCT-213 (30 Pack), PCT-212 (30 Pack), transparent tool box packaging.
Love using these! They are so simple to use and so far hold without a problem. They are a bit bulky but if you have the room they are worth it. I have used them in my garage to hook together the lights. I removed the wire nuts and used these instead. Just flip the little handles up, insert your wire, (I have used on AWG12 in the garage) flip the handles down and you are done! No finger cramps with all the wire nut twisting!
